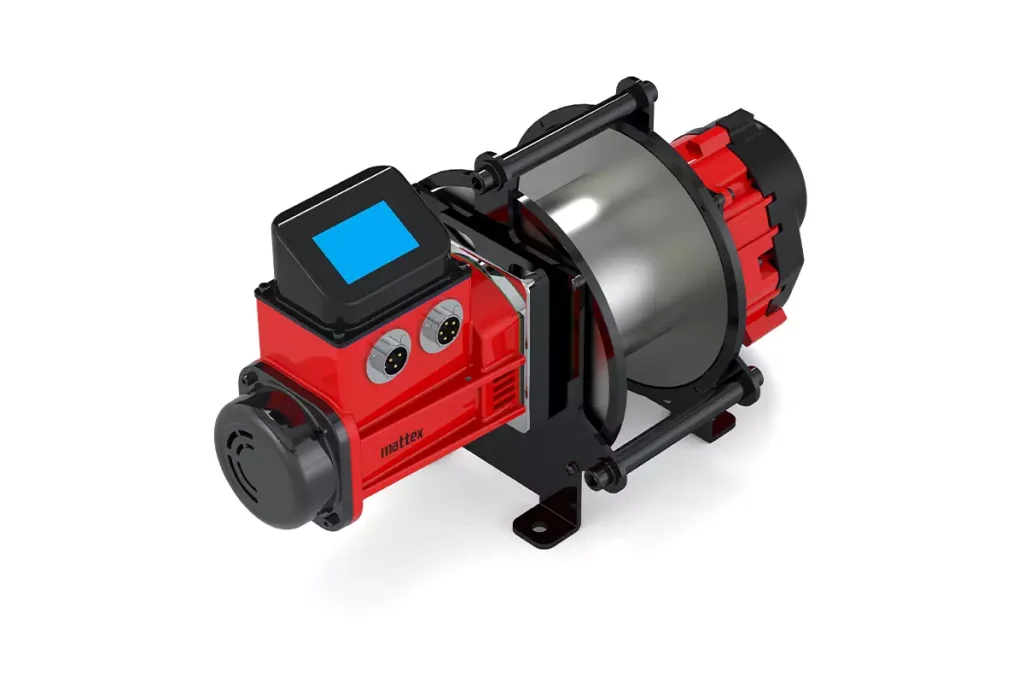

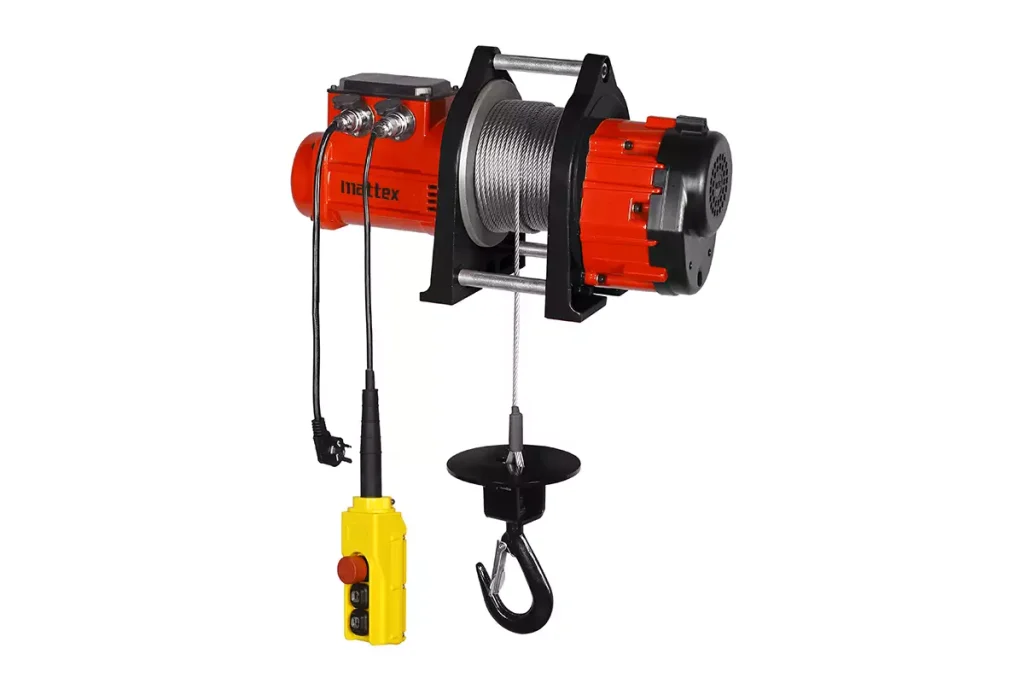

VFF Electric Wire Rope Winch
VFF Electric Wire Rope Winch is a steel wire rope type electric lifting and hoisting equipment, mainly used for vertical lifting and lowering operations of heavy objects. It is suitable for industries and scenarios such as building decoration, factory material hoisting, small-scale engineering lifting, warehouse loading and unloading, equipment installation, rooftop / high-rise material loading, etc. This product features high steel wire rope strength, long lifting stroke, stable dual-motor power, emergency stop handle on the operation handle, convenient installation, and fast lifting speed. It can help customers solve problems such as high-rise material transportation, long-distance lifting, material hoisting at construction sites, and vertical transportation of materials in narrow spaces. Compared with chain-type electric hoists, it has certain advantages in long-stroke lifting and high-altitude material loading, and is suitable for use in material loading at construction sites, high-rise interior decoration, and fixed-point lifting operations with a longer lifting height.
Share to
Features
- Permanent magnet frequency conversion technology, stable lifting and falling without shaking. Intelligent integrated control appliances can save energy by more than 45%. Electrical control 4v low voltage is safe and reliable, no worry about electric shock.
- Overload and overheat protection can ensure safe and durable, and high and low speed can be switched at will, which make the machine suitable for different scenarios.
- Optional-accurate weight display and real-time monitoring, record keeping for query, wireless control + wireless communication.
- Double safety brake device: When the power is off, the motor decelerates instantly and the mechanical ratchet brake take action at the same time.
- The switch line and power line are designed separately, which is easy to install.
- Small button switch, easy operation
- The main unit is small in size and light in weight and can be moved quickly.
- Single 100V-240V power supply can be customized for DC12V, 18V, 24V,36V,48V.
- The outermost layer of the hoisting rope is the lightest lifting capacity, but fastest in speed.
- Using triangle hanging wheel with double wire will increase lifting capacity by 85%, but lifting speed half.
Specification

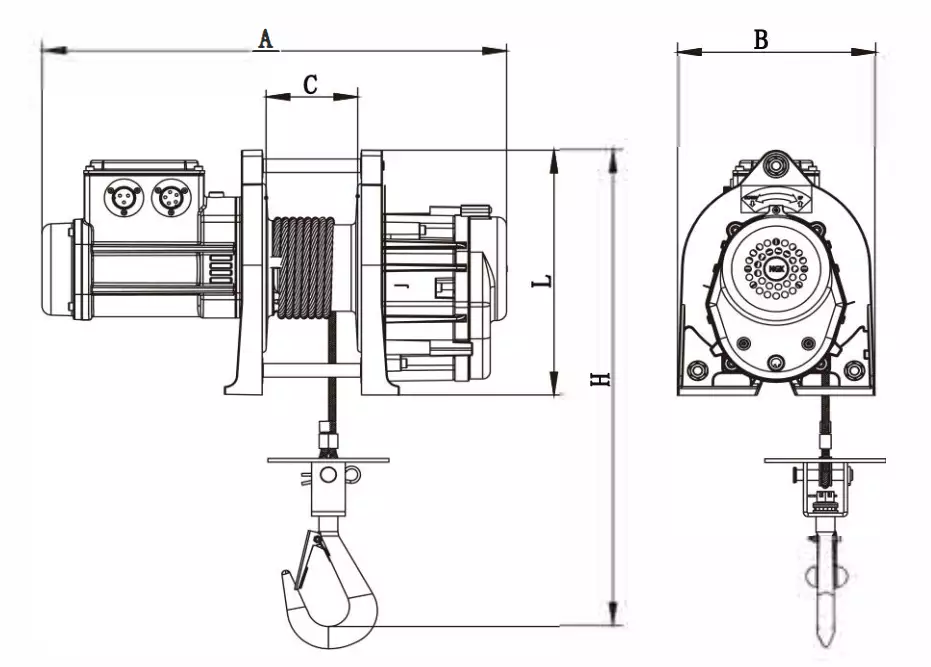

| Model | A(mm) | B(mm) | C(mm) | L(mm) | H(mm) |
| VFF200F-30 | 496 | 210 | 95 | 271 | 470 |
| VFF200F-70 | 550 | 210 | 150 | 271 | 470 |
| VFF200F-120 | 610 | 210 | 205 | 271 | 470 |
| VFF300F-30 | 496 | 210 | 95 | 271 | 470 |
| VFF300F-60 | 550 | 210 | 150 | 271 | 470 |
| VFF300F-90 | 610 | 210 | 205 | 271 | 470 |
| VFF200S-30 | 496 | 210 | 95 | 271 | 470 |
| VFF200S-70 | 550 | 210 | 150 | 271 | 470 |
| VFF200S-120 | 610 | 210 | 205 | 271 | 470 |
| VFF300S-30 | 496 | 210 | 95 | 271 | 470 |
| VFF300S-60 | 550 | 210 | 150 | 271 | 470 |
| VFF300S-90 | 610 | 210 | 205 | 271 | 470 |
| VFF500-30 | 496 | 210 | 95 | 271 | 470 |
| VFF500-45 | 550 | 210 | 150 | 271 | 470 |
| VFF500-60 | 610 | 210 | 205 | 271 | 470 |
| Specification Model | Lifting Capacity (kg) | Variable Frequency Motor power(KW) | Lifting speed (m/min) | Power supply | Lifting height(m) | Wire rope (mmxm) | Power cable length (m) | Control handle cable length(m) | N.W (kg) | G.W (kg) | Package size (cm) | |
| Low | High | |||||||||||
| VFF200F-30 | 200 | 1.5 | 8 | 18 | 1Phase, 110V/220V, 50Hz/60Hz | 28 | 5*30 | 4.5 | 6 | 18 | 22 | 55*35*30 |
| VFF200F-70 | 200 | 8 | 18 | 68 | 5*70 | 23 | 27 | 60*35*30 | ||||
| VFF200F-120 | 200 | 8 | 18 | 118 | 5*120 | 29 | 33 | 65*35*30 | ||||
| VFF300F-30 | 300 | 1.5 | 6 | 15 | 28 | 6*30 | 19 | 23 | 55*35*30 | |||
| VFF300F-60 | 300 | 6 | 15 | 58 | 6*60 | 24 | 28 | 60*35*30 | ||||
| VFF300F-90 | 300 | 6 | 15 | 88 | 6*90 | 29 | 33 | 65*35*30 | ||||
| VFF500-30 | 500 | 2.5 | 7 | 17 | 28 | 7*30 | 21 | 25 | 55*35*30 | |||
| VFF500-45 | 500 | 7 | 17 | 43 | 7*45 | 24 | 28 | 60*35*30 | ||||
| VFF500-60 | 500 | 7 | 17 | 58 | 7*60 | 28 | 32 | 65*35*30 | ||||
| VFF200S-30 | 200 | 2.5 | 13 | 35 | 28 | 5*30 | 18 | 22 | 55*35*30 | |||
| VFF200S-70 | 200 | 13 | 35 | 68 | 5*70 | 23 | 27 | 60*35*30 | ||||
| VFF200S-120 | 200 | 13 | 35 | 118 | 5*120 | 29 | 33 | 65*35*30 | ||||
| VFF300S-30 | 300 | 2.5 | 10 | 26 | 28 | 6*30 | 19 | 23 | 55*35*30 | |||
| VFF300S-60 | 300 | 10 | 26 | 58 | 6*60 | 24 | 28 | 60*35*30 | ||||
| VFF300S-90 | 300 | 10 | 26 | 88 | 6*90 | 29 | 33 | 65*35*30 | ||||
