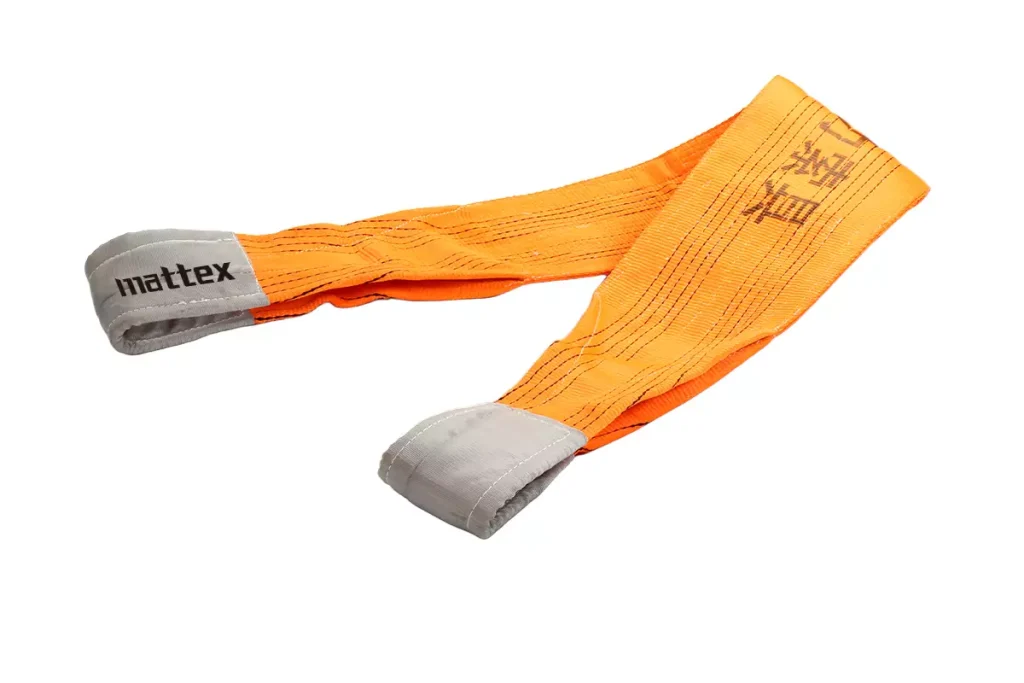

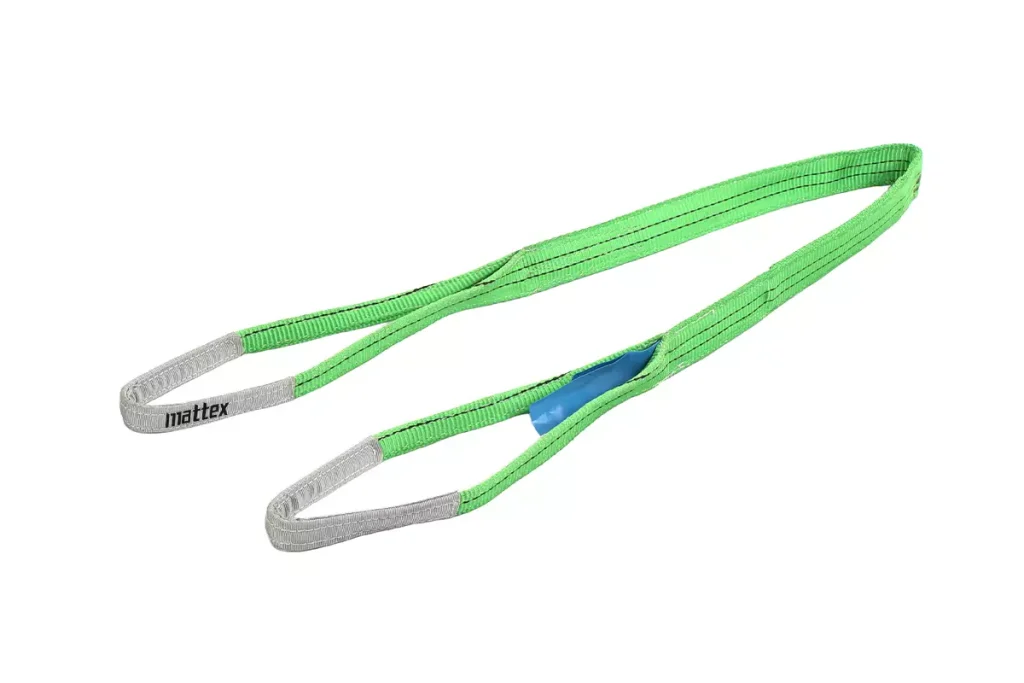

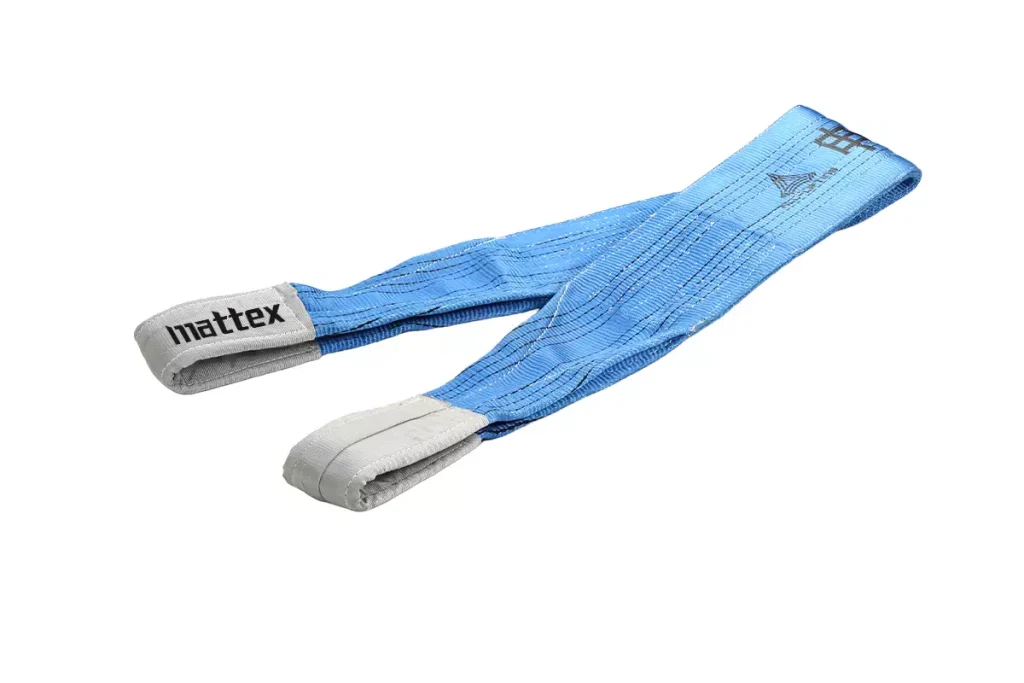

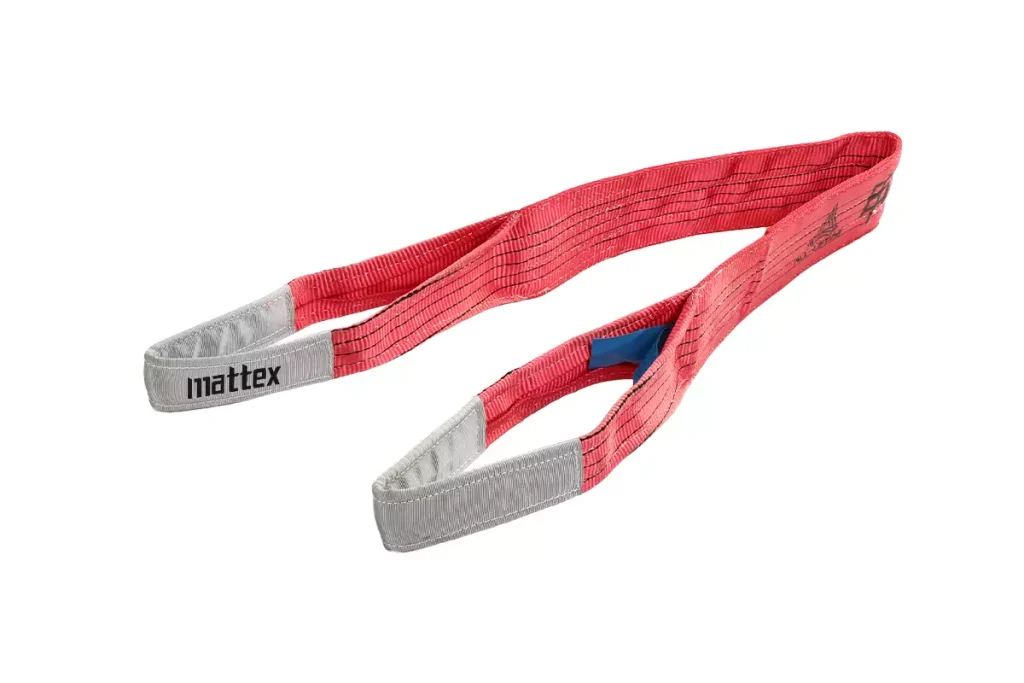

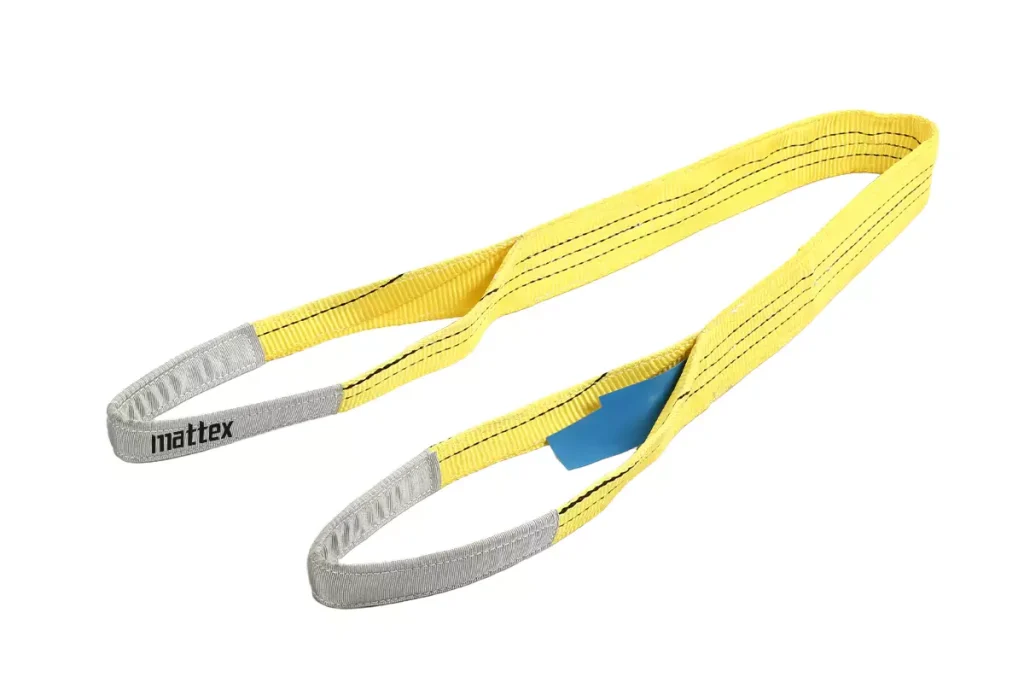

Webbing Sling
The Webbing Sling is made of high-strength polyester webbing. Both ends are equipped with thick protective sleeves for the eye loops, ensuring stable load-bearing and soft texture. It is mainly used for lifting and transporting various heavy objects, and is suitable for various lifting scenarios such as in factories, construction sites, and equipment loading/unloading.
Share to

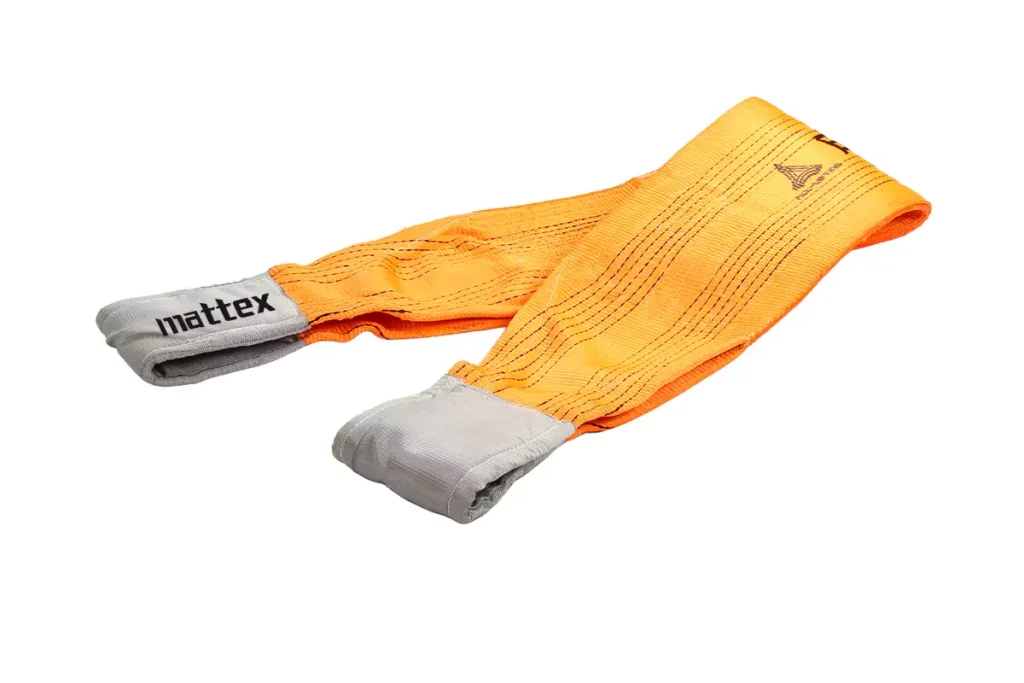

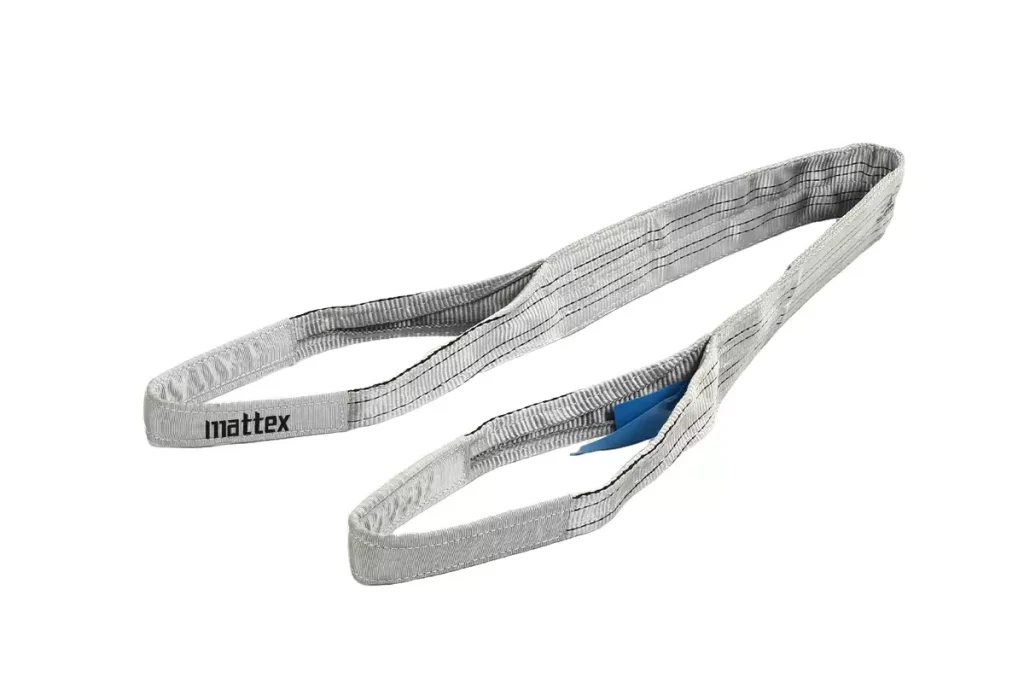

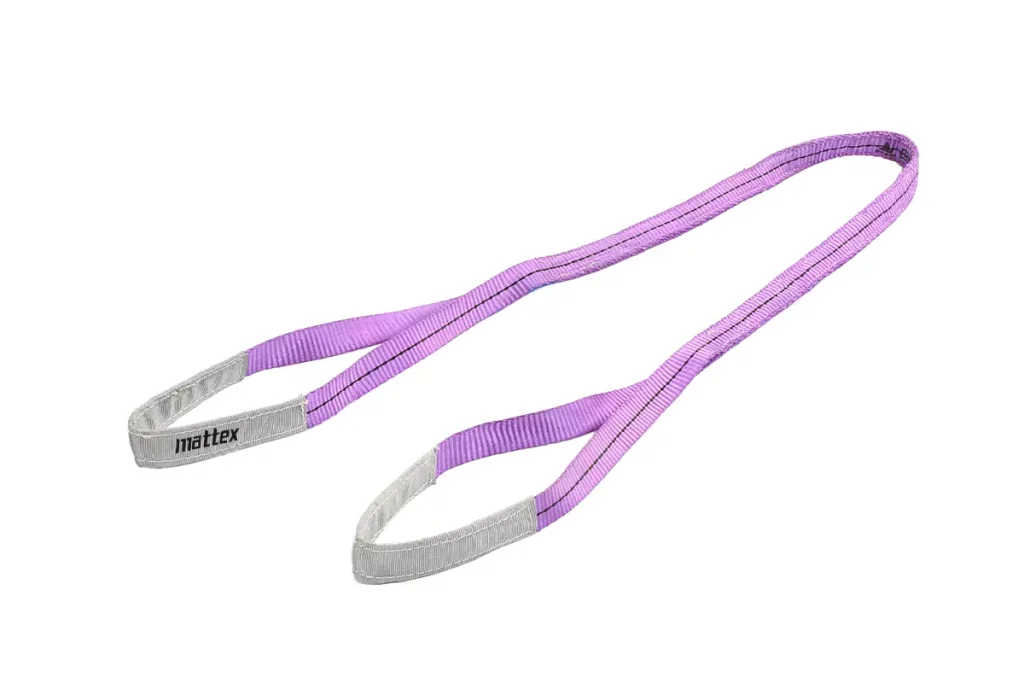

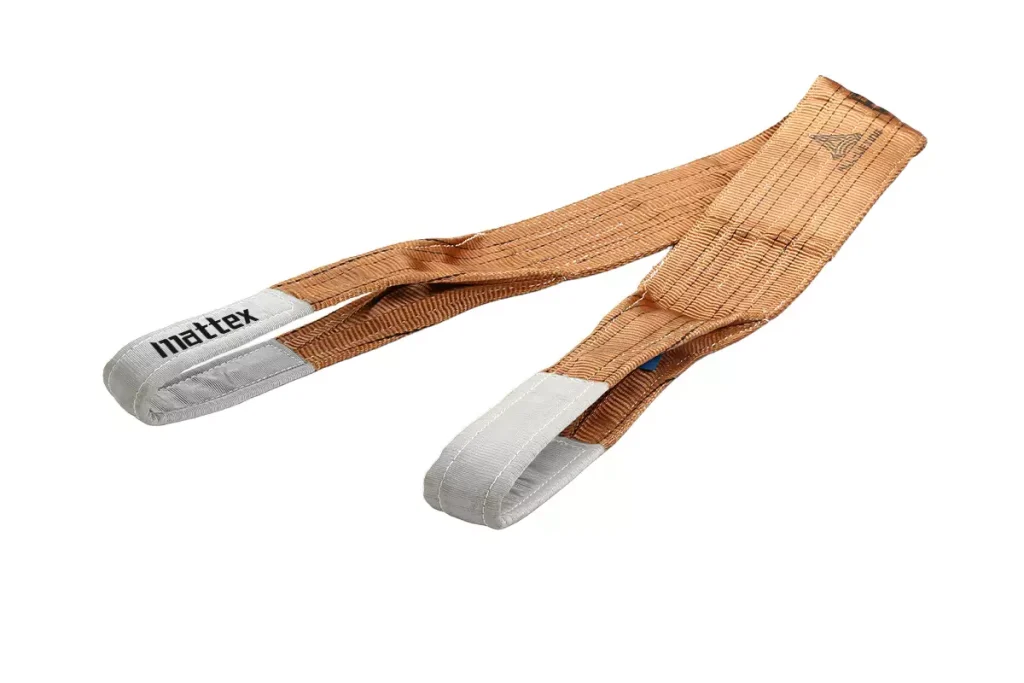

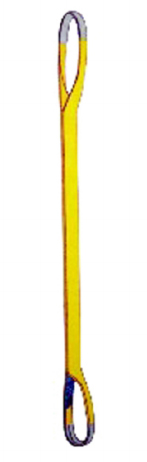

Duplex Eye-Eye Flat Webbing Sling
- 100%high tenacity polyester material
- Single,double,three,four ply
- With reinforced lifting eyes
- Low enlongation
- Length avaiable:1m to 12m
- Safety factor: 5:1, 6:1, 7:1, 8:1
- According to EN1492-1:2000
Specifications
| WLL | 5:1 | 6:1 (SO Standard) | 7:1 (Duroean Standard) | 8:1 (AS/NZS Standard) | |||||||
| Belt Width | Breaking Load | Belt Width | Breaking Load | Belt Width | Breaking Load | Belt Width | Breaking Load | ||||
| ton | mm | ton | mm | ton | mm | ton | mm | ton | |||
| 1 | 25 | 5 | 25/38 | 6 | 30/50 | 7 | 50 | 8 | |||
| 2 | 50 | 10 | 50 | 12 | 60 | 14 | 65 | 16 | |||
| 3 | 75 | 15 | 75 | 18 | 90 | 21 | 95 | 24 | |||
| 4 | 100 | 20 | 100 | 24 | 120 | 28 | 120 | 32 | |||
| 5 | 125 | 25 | 100/125 | 30 | 150 | 35 | 150 | 40 | |||
| 6 | 150 | 30 | 100/150 | 36 | 180 | 42 | 180 | 48 | |||
| 8 | 200 | 40 | 100/200 | 48 | 240 | 56 | 240 | 64 | |||
| 10 | 250 | 50 | 150/250 | 60 | 300 | 70 | 300 | 80 | |||
 | Webbing width (mm) | Colourcoded according to EN 1492-1 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling | |||||||
| Straight life | Choked life | β | Straight life up to 45° | Choked life up to 45° | Straight life 40°-60° | Choked life 45°-60° | |||||
| 0°-7° | 7°-45° | 45°-60° | |||||||||
 |  |  |  |  |  |  |  |  | |||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | |||
| 30/50 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 800 | |
| 60/60 | WLL2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 | |
| 90/75 | WLL3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 | |
| 120/100 | WLL4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 | |
| 140/125 | WLL5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 | |
| 180/150 | WLL6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 8.400 | 6.720 | 6.000 | 4.800 | |
| 240/200 | WLL8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 11.200 | 8.960 | 8.000 | 6.400 | |
| 300/250 | WLL10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 14.000 | 11.200 | 10.000 | 8.000 | |
Recommend Products
Safety Harness 004
full-body high-altitude safety harness

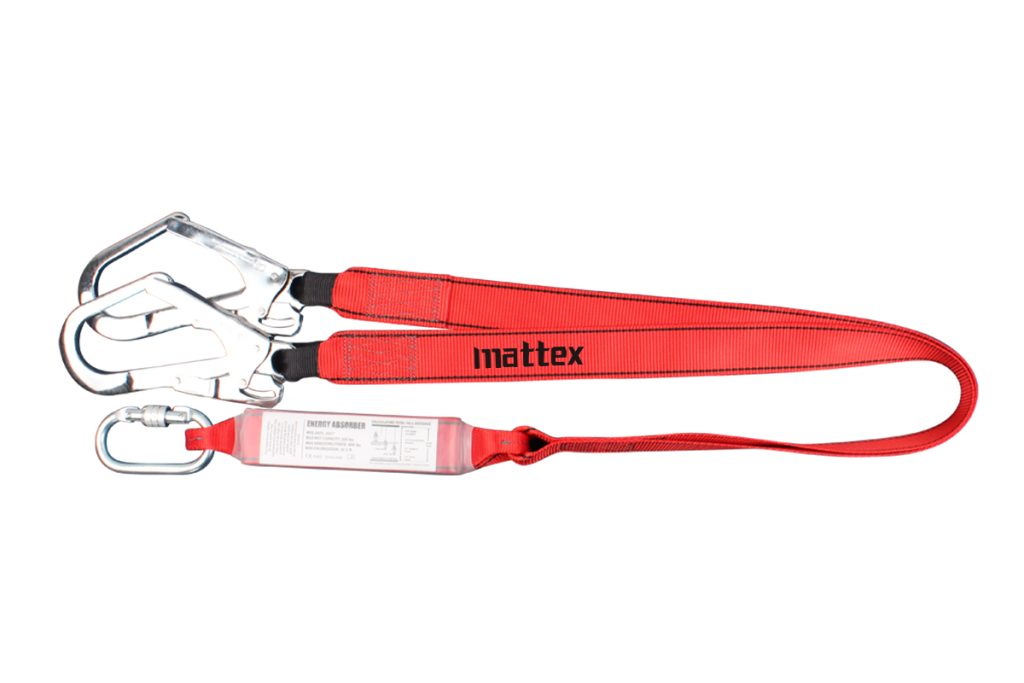

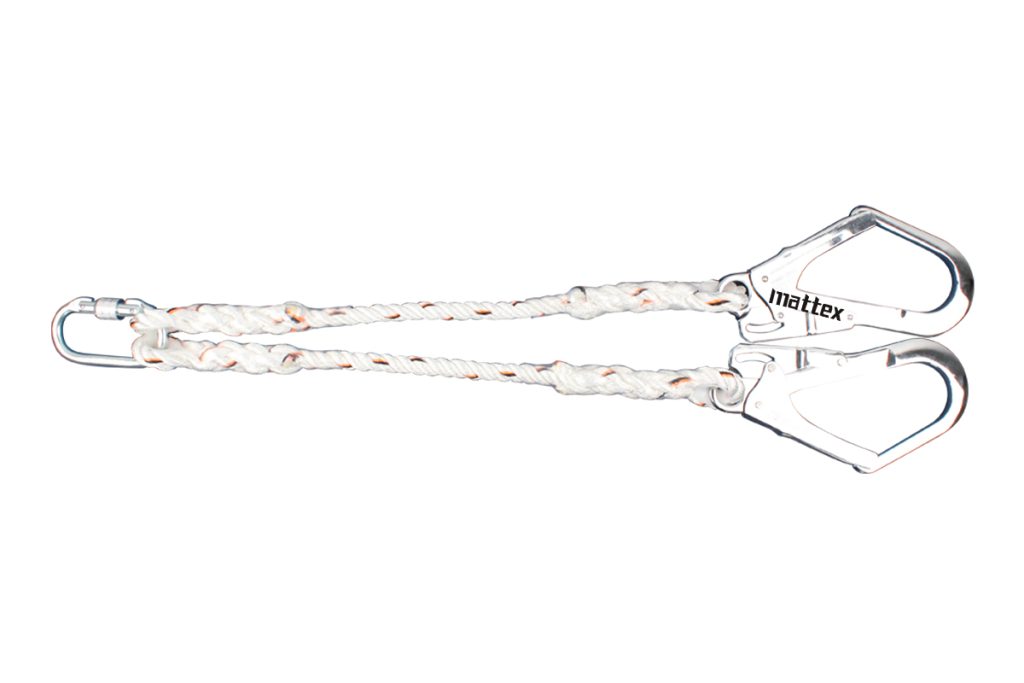

Safety Lanyard 020
