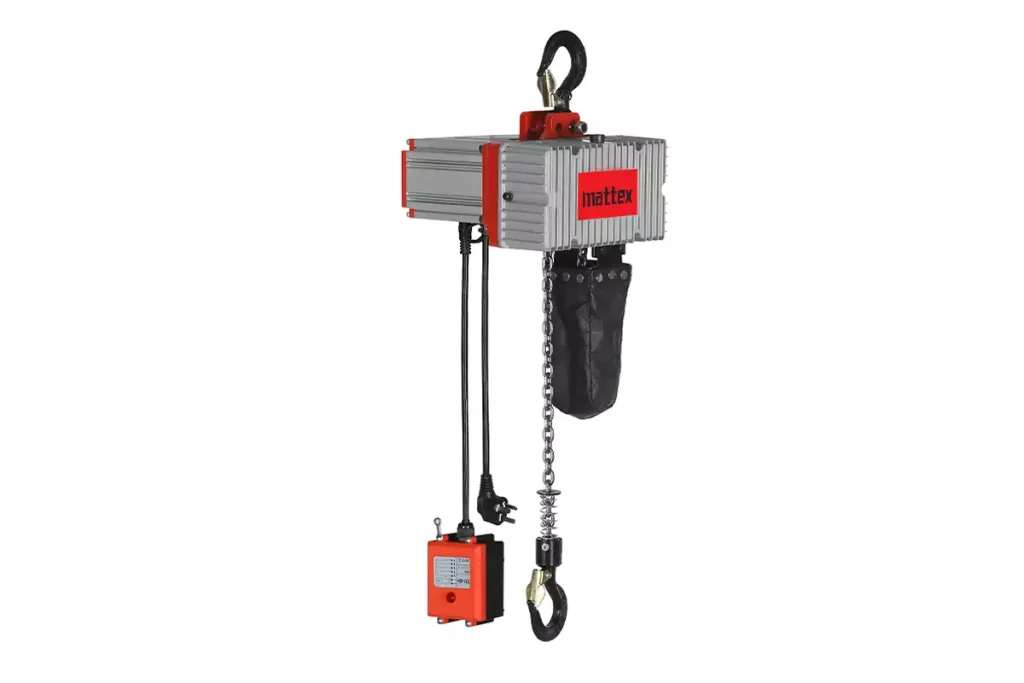

ZH MINI Electric Chain Hoist

The ZH MINI Electric Chain Hoist is a lightweight and small-sized electric chain hoist. It is mainly used for lifting and lowering light workpieces and materials. When combined with a track trolley, it can achieve short-distance translation. It is suitable for small processing workshops, equipment maintenance stations, storage warehouses, assembly lines, auto repair workshops, exhibition halls, stages, and small-scale building installations, etc. and scenarios. This product features a powerful brake, a simple main structure, easy disassembly and installation, and an extremely low failure rate. Compared to ordinary products, it has certain advantages in terms of overall machine volume, installation convenience, and space adaptability. It is suitable for use in lifting operations at workstations with light loads, frequent start-stop, and restricted clearances.

Share to

Feature

  • The chain-type electric hoist with the shortest travel distance for the machine body.
  • It uses super strong and wear-resistant alloy steel copper chains, with a safety factor more than six times higher.
  • The powerful brake is accurate and safe, with a simple main structure, easy to disassemble and install, and an extremely low failure rate.
  • The hook head can rotate 360° and is equipped with a safety stopper to prevent detachment.

Specification

ModelLifting
capacity(kg)		Variable
frequency
motor
power(KW)		Lifting Speed(m/min)Lifting
height
(m)		Chain(mm)Voltage(V)Battery
capacity		N.W./G.W.
(kg)		Package
size(cm)
ZH2502500.83.5/1034×12220V9/1042x30x27
ZH5005001.7/54×12 double chains220V11/12

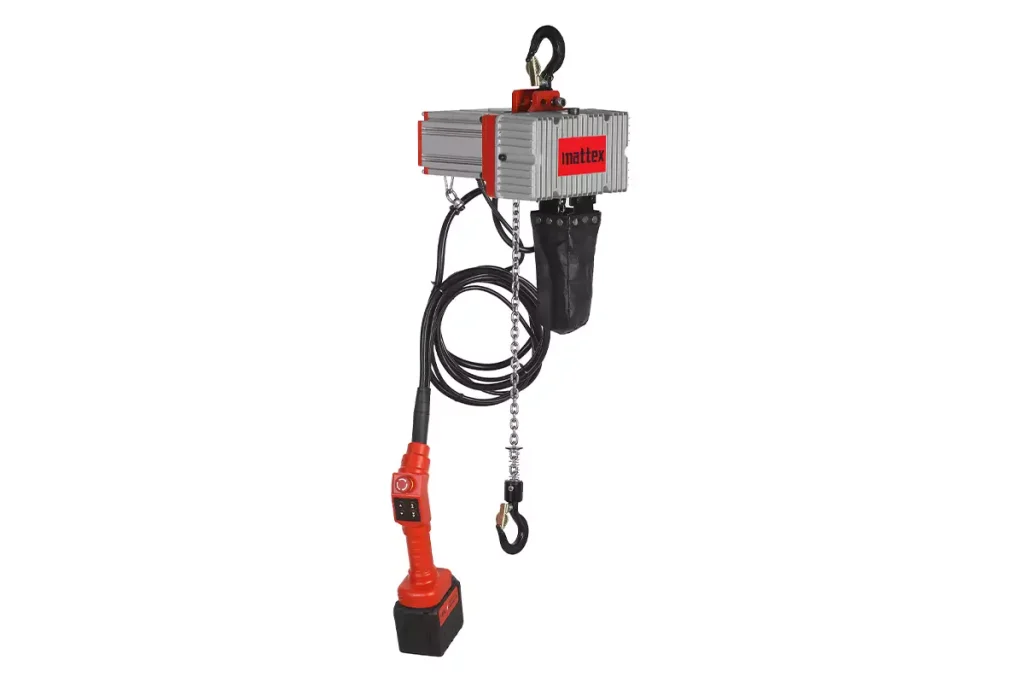

ZH250 With
Lithium battery		2503.5/104×1218V18V 4ah10/11.542x40x27
ZH500 With
Lithium battery		5001.7/54×12 double chains18V11.5/13
