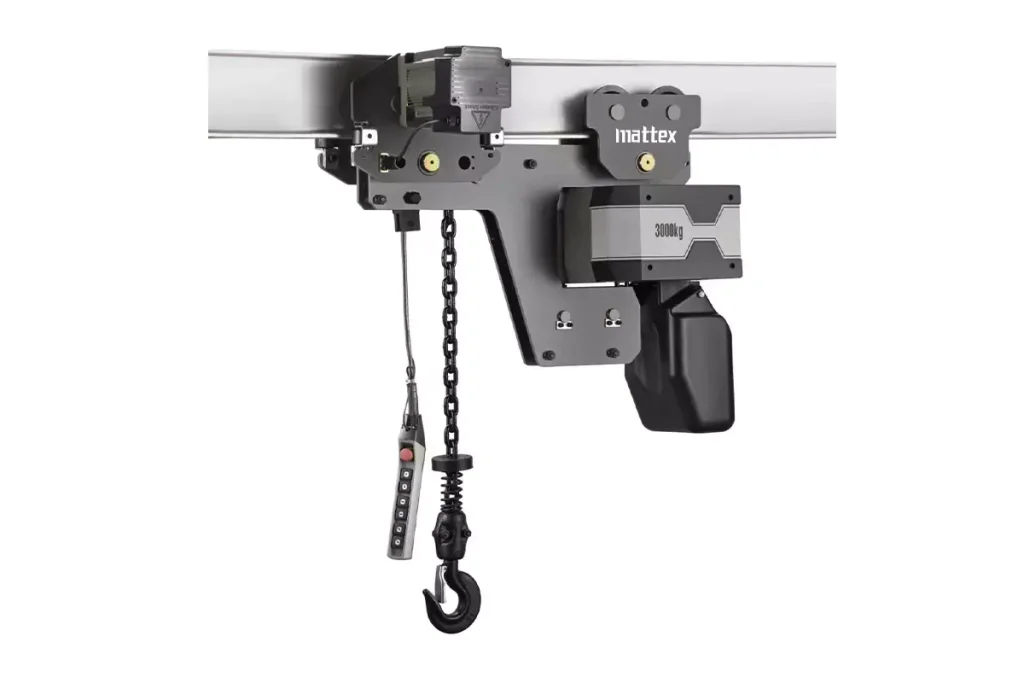

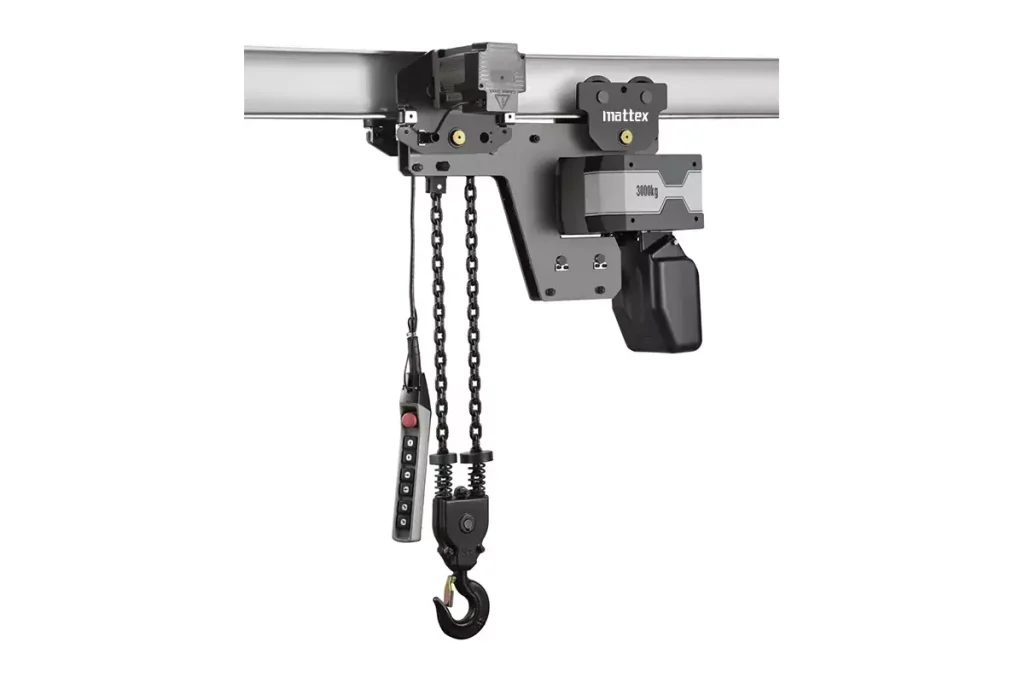

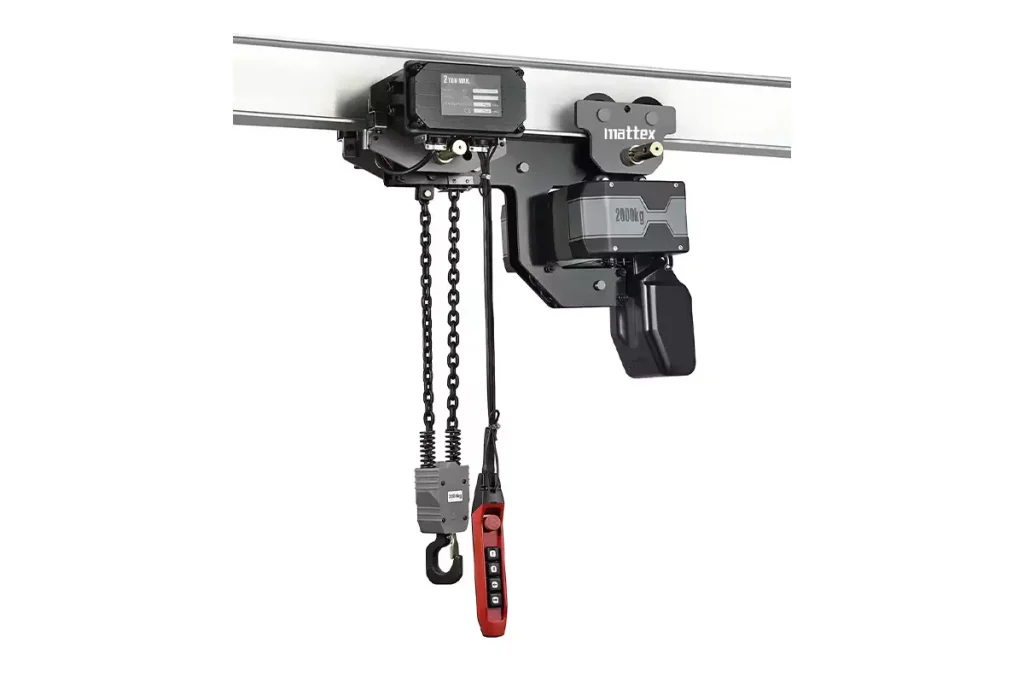

YJ Low Headroom Electric Chain Hoist

Feature

• Suitable locations: YJ chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
• Structural assembly: The optimised body of the YJ chain hoist, when paired with a highperformance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
• Convenient maintenance: The YJ chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs.
• Voltage range: Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide.

Small Size Specification

Model	Capacity	Lifting height	Lifting speed	Power	RPM	Phases	Voltage	Control Voltage	Rating	Travelling Speed	Travelling Power
	(kg)	(m)	(m/min)	(kw)	(r/min)		(V)	(V)		(m/min)	(kW)
YJ 0.5-01	500	4	8	0.8	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 01-01	1000	4	4	1.1	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 01-02	1000	4	8	0.8	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 02-01	2000	4	7	1.1	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 02-02	2000	4	4	2.2	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 03-01	3000	4	7	3.0	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 03-02	3000	4	3.5	2.2	1480	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 05-02	5000	4	3.5	3.0	1480	3/2	110/480	24-48	M5	11/21	0.75*2

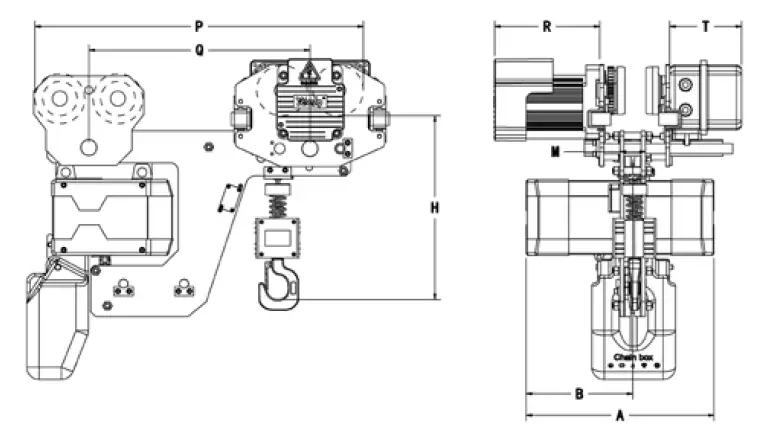

Model	H	A	B	P	Q	T	R	M
YJ 0.5-01	365	375	218	645	438	210	142	50
YJ 01-01	385	400	243	645	438	210	142	58
YJ 01-02	440	375	218	645	438	210	142	50
YJ 02-01	485	490	258	730	505	230	142	64
YJ 02-02	480	400	243	646	438	230	142	58
YJ 03-01	530	490	258	785	526	230	142	72
YJ 03-02	600	490	258	762	503	230	142	64
YJ 05-02	635	490	258	835	514	230	142	72

Large Size Specification

Model	Capacity	Lifting height	Lifting speed	Power	RPM	Phases	Voltage	Control Voltage	Rating	Travelling Speed	Travelling Power
	(kg)	(m)	(m/min)	(kw)	(r/min)		(V)	(V)		(m/min)	(kW)
YJ 10-04	10000	4	3.5	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 15-06	15000	4	2.25	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 20-08	20000	4	1.75	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 25-10	25000	4	1.4	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2

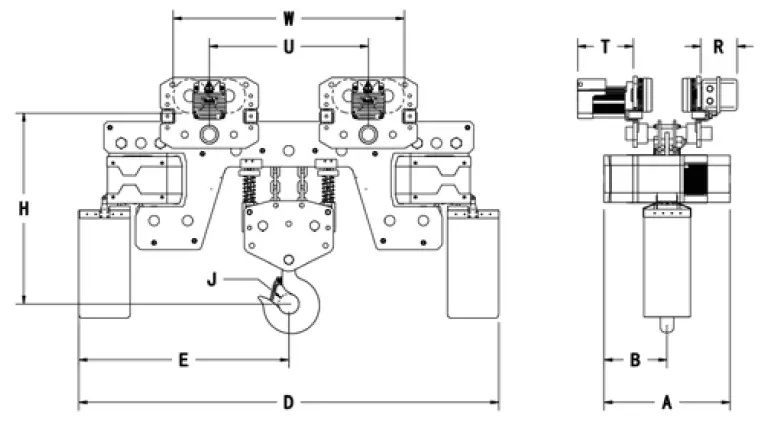

Model	H	A	B	D	E	W	U	T	R	J
YJ 10-04	780	520	260	1720	860	945	650	230	142	83
YJ 15-06	900	520	260	1930	965	1090	795	230	142	106
YJ 20-08	1060	520	260	2120	1060	980	616	230	142	118
YJ 25-10	1230	520	260	2310	1155	1170	806	230	142	118
