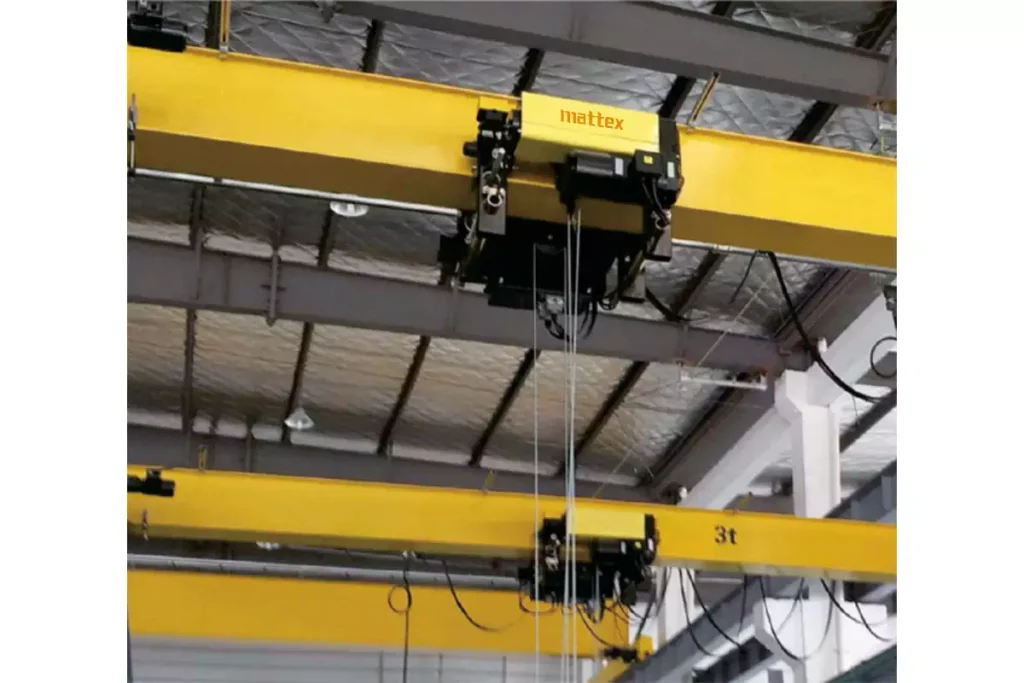

NHW Electric Wire Rope Hoist
This NHW Electric Wire Rope Hoist is compatible with single or double girder cranes. Its low clearance structure saves the height of the factory building. It operates stably under heavy loads and precisely positions. It is suitable for heavy-duty lifting operations in industrial workshops, steel structure factories, large mold factories, power plant maintenance and other scenarios involving large-tonnage and high-frequency heavy workpiece lifting. It meets the continuous heavy-load lifting requirements in industrial settings.
Share to
Features
- Accumulation and innovation
- Compact structure, excellent performance
- Efficient transmission and power source
- Excellent performance, safe and reliable
- Double speed lifting motor with 1-32t standard variable
- Frequency lifting motor with 32t-100t standard
- Lifting electromagnetic disc brake and maintenance-free design
- 380V/3Ph/50Hz supply voltage
- Control voltage 48V
- Lifting limit switch
- Variable frequency motor of trolley with the speed of 5-20m/min
- Protection grade of electric motor is Grade IP54, and insulation grade is Grade F
- Liting hook group with safety clasp
- Load liting limiter
- Environment temperature: -20℃-+40℃
Specification
| Loadcapacity(kg) | FEM | ISO | Height (m) | Speed (m/min) | Trolley speed (m/min ) | H size (mm) | C size (mm) |
| 1000 | 4m | M7 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 |
| 1250 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5～20 | 232 | 500 |
| 1600 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 |
| 1600 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 |
| 2000 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5～20 | 232 | 500 |
| 2000 | 3m | M6 | 6/9/12/18 | 1.6/10.0 | 5～20 | 254 | 660 |
| 2500 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 |
| 2500 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 |
| 3200 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 |
| 3200 | 1Am | M4 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 |
| 5000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 254 | 590 |
| 5000 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 321 | 790 |
| 6300 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 254 | 590 |
| 8000 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 |
| 10000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 |
| 10000 | 3m | M6 | 6/9/12/18 | 0.6/4.0 | 5~20 | 364 | 850 |
| 12500 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 |
| 12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5～20 | 364 | 850 |
| 16000 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 364 | 850 |
| 12500 | 1Am | M4 | 6/9/12/18 | 0.6/4.0 | 5~20 | 364 | 850 |
