VFE Electric Winch
VFE Electric Winch is a portable and compact steel wire rope lifting and hoisting equipment. It is mainly used for vertical lifting and lowering of light and medium-sized heavy objects, and is suitable for indoor material loading and unloading in decoration, small factories, warehouses, equipment installation in stores, roof maintenance, and small-scale engineering hoisting and other industries/scenarios. This product features a lightweight body, quick installation and disassembly, availability of 220V household power supply, simple operation, an emergency stop safety button, and high economic cost performance. It can help customers solve problems such as lifting materials in high-rise indoor areas, temporary lifting operations, frequent changes in the site, and material lifting with limited budget. Compared to heavy-duty steel wire rope hoists, it has certain advantages in portability, installation and disassembly speed, and procurement cost, and is suitable for short-term, temporary lifting, indoor high-level material loading, and light-load lifting operations.
Share to
Features
- Permanent magnet frequency conversion technology assures smoothly lifting with soft start, and intelligent integrated control appliances save more than 45% energy, 4V low voltage controlling is safe and reliable, and there is no fear of electric shock
- Fast speed and high efficiency, with optional overload thermal protection for safety and durability, suitable for different scenarios
- Small press switch, easy and laborsaving operation, optional with wireless remote control
- Dual safety braking device, which instantly slows down the motor when power is cut off and applies mechanical braking
- Single 100V-240V power supply, customizable for DC12V, 18V, 24V, 36V, 48V
- Inverse prevent device: machine has the function of preventing reverse winding, and will stop automatically when reverse winding occurs.
- Hoist occupies small volume, lightweight, move easily.
- The outermost layer of the hoisting rope is the lightest lifting capacity, but fastest in speed
- Using triangle-hanging wheel with double wire will increase lifting capacity by 85%, but lifting speed half.
Specification

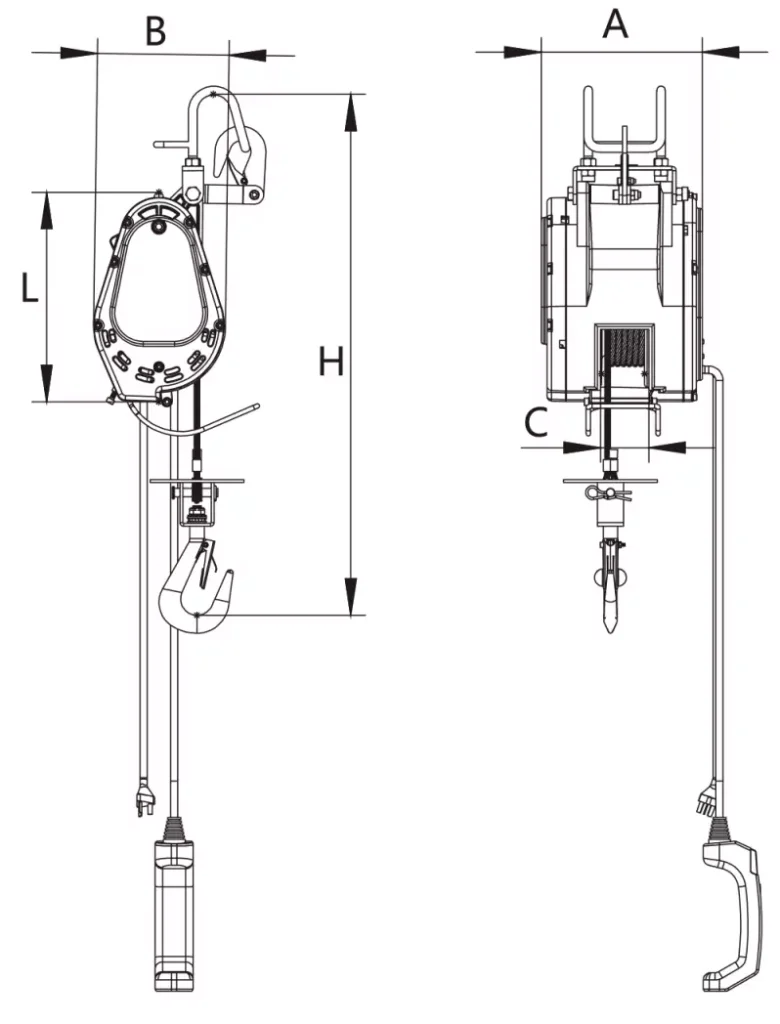

| Model | A | B | C | L | H |
| VFE170 | 222 | 181 | 65 | 287 | 655 |
| VFE230 | |||||
| VFE340 | |||||
| VFE490 |
| Model | Lifting Capacity(kg) | Permanent magnet inverter motor(Kw) | Lifting speed (m/min) | Power supply | Lifing height(m) | Wire rope (mmxm) | Power cable length(m) | Control handle cable length(m) | N.W(kg) | G.W(kg) | Package size(cm) | |
| Low | High | |||||||||||
| VFE170 | 170 | 1.0 | 11 | 22 | 1Phase, 110V/220V, 50Hz/6OHz | 29 | 5×30 | 1.5 | 2.5 | 16 | 18 | 45×30×25 |
| VFE230 | 230 | 1.0 | 9 | 18 | 29 | 16 | 18 | |||||
| VFE340 | 340 | 1.4 | 7 | 14 | 29 | 16 | 18 | |||||
| VFE490 | 490 | 1.8 | 8 | 15 | 20 | 6×21 | 16 | 18 | ||||
