ST-C Stainless Steel Chain Block

The ST-C Stainless Steel Chain Block is entirely made of stainless steel, resistant to rust and acid-base corrosion; it has a compact structure and comes with a self-locking brake, ensuring that the heavy objects can be stably locked after lifting; it is operated manually and does not require electricity connection. It can help customers solve the problem of ordinary hoists easily rusting and getting damaged in humid, salt-spray, and corrosive working conditions.
Compared with ordinary painted hand-pulled hoists, it has strong anti-corrosion and rust-proof capabilities and is suitable for intermittent lifting operations in humid and corrosive medium environments.

Share to

Features

  • The main components are made of all stainless steel,which has strong anti fouling, anti corrosion and anti-wear properties.
  • The surface of the product is smooth and compact,not easy to be dusty and has good self-cleaning properties.
  • The hoist is easy to maintain,as it gets scratches or rust in daily use.
  • It is widely used in food,chemical,biological,marine and other places with corrosive factors and high cleanliness requirements.
  • Note: It is the responsibility of the user to tell in which corrosive environment the product is used.

Specifications

ModelST-100CST-150CST-200C1ST-200C2ST-300CST-500C
Capacity(Tons)  11.52235
Lifting height(m)2.52.52.52.533
Test load((KN)12.518.8252537.562.5
Stands of load chain 111223
Load chain diameter (mm)7×219×2710×307×219×279×27
Hand chain (mm)5×23.3
Force(N)304265310335343270
Net weight(kg)1316.524.519.531.560
Extra weight per meter of extra lift (kg)1.972.613.13.14.377.3

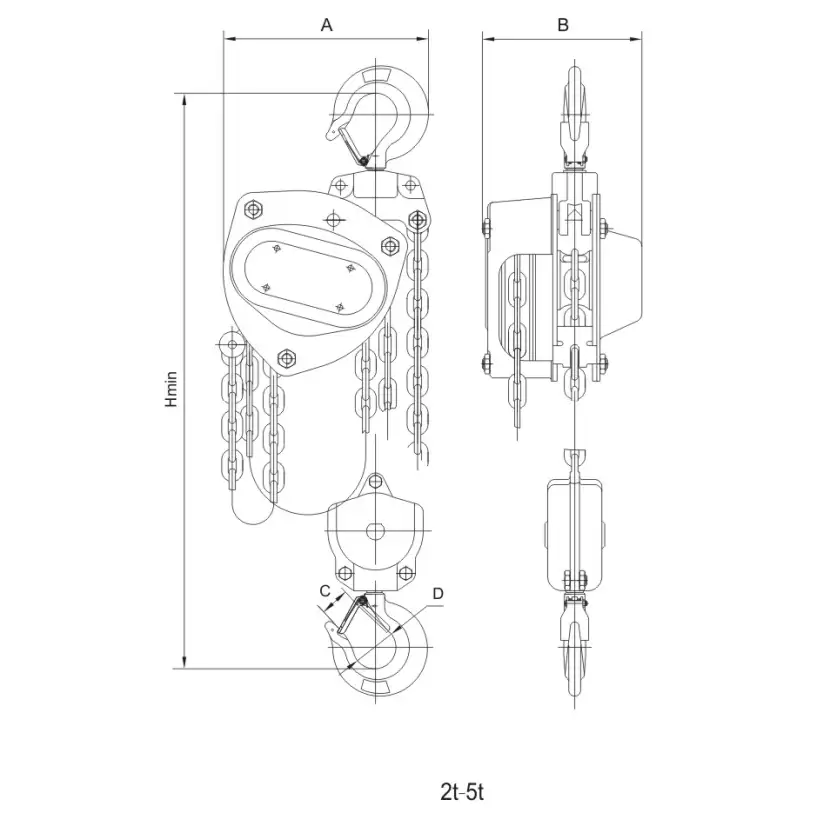

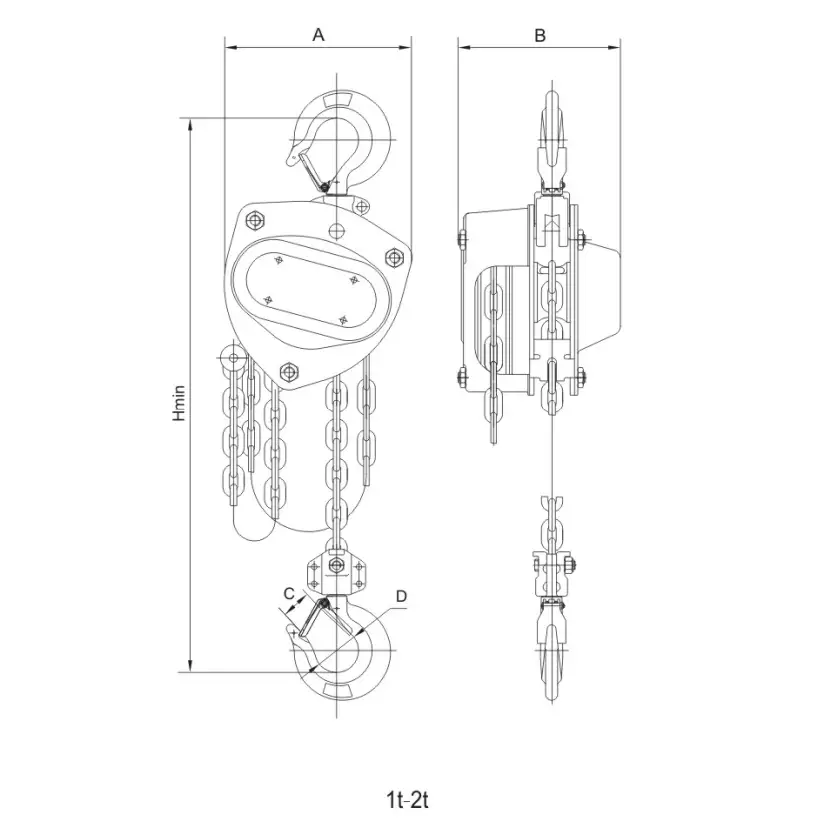

Dimensions (mm)A172196223192230365
B151173189151173189
C2629.539343941
D404555505565
H min376442520425565710
