HSZ Type Chain Block
HSZ Type Chain Block has a circular stamping shell with a compact and lightweight structure, making it convenient for storage and carrying. Built-in safety self-locking brake. It automatically locks after lifting heavy objects to prevent falling. It can help customers solve the problems of short-distance heavy object lifting and positioning in power-off environments.
Compared with electric hoists, it is not restricted by wires or power sources, has a low failure rate, is easy to maintain, has a high cost performance, and is suitable for low-frequency intermittent lifting.
Share to
Features
- Safety and reliable in operation with minimum maintenance
- Highly mechanical efficiency,small hand pulling force Light weight, easy to carry
- Reinforced double pawl braking system
- Safety factor:4 times of the rated capacity
- High strength grade 80 alloy steel load chain
- Forged hooks with reinforced safety latch
Specifications
| Capacity(ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Standard liting height(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Running test load(KN) | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 125 | 250 |
| Effort required to lift rated load(N) | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 |
| Strands of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| Diameter of load chain(mm) | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 |
| Net weight(kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 155 |
| Extra weight per meter of extra lift(kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 |
Recommend Products
360° Rotate Chain Block
Cap.:0.25t-50t
360° Rotate
360° Rotate
CK Type Chain Block
Cap.:0.5t-20t
CK Type
CK Type

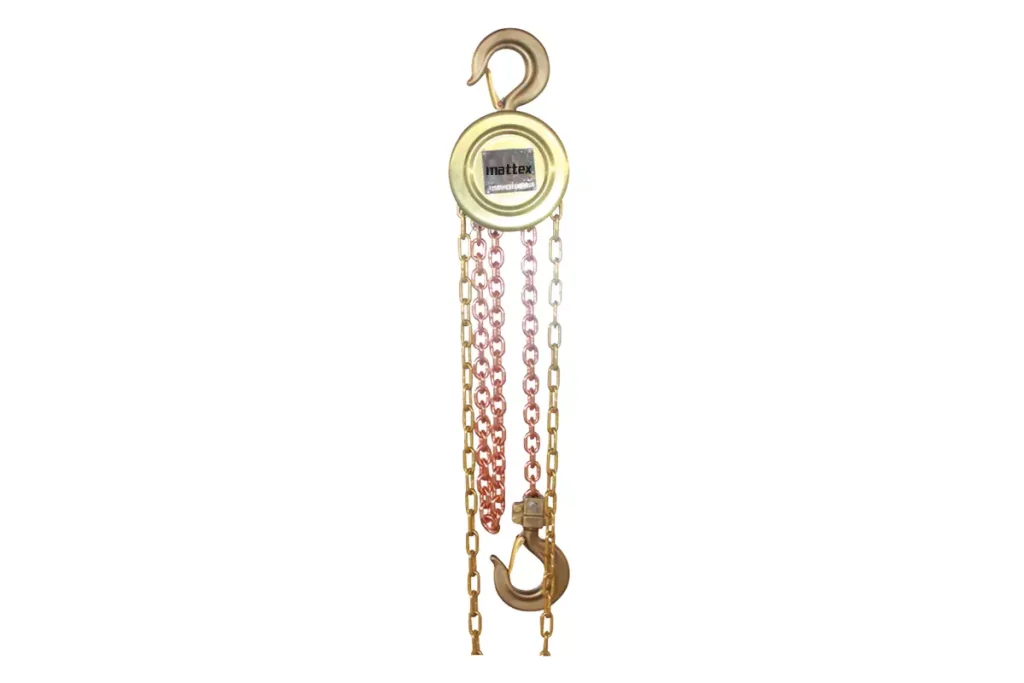

EX-C Spark Proof Chain Block
