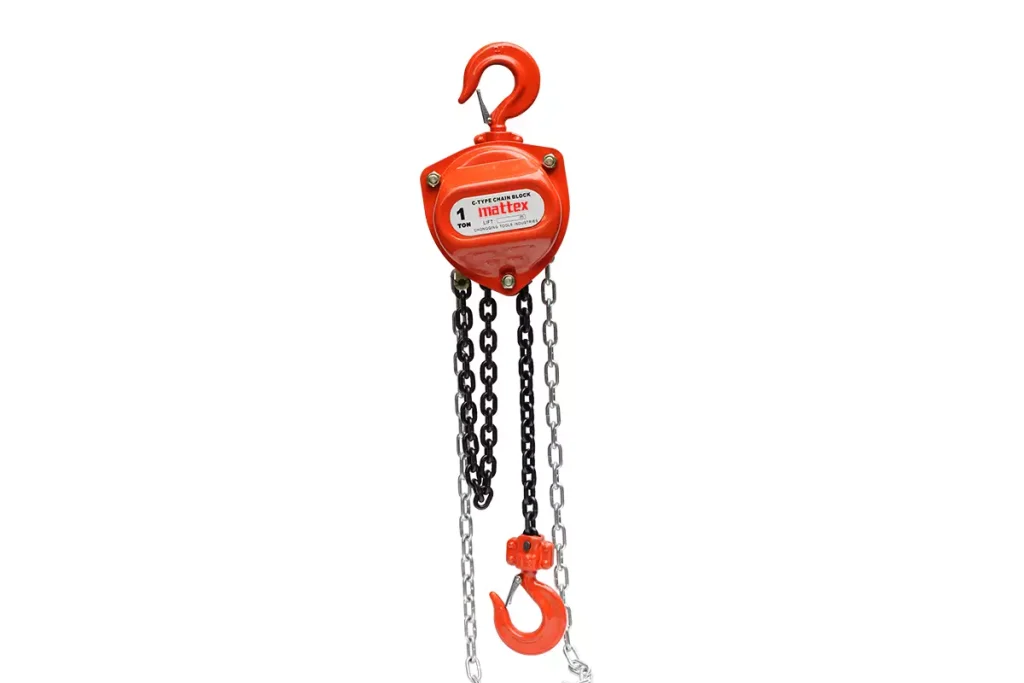

KII Type Chain Block

The KII Type Chain Block is highly durable and shock-resistant. It is equipped with a built-in bidirectional self-locking brake, which enables the lifting of heavy objects to be instantly locked, ensuring safety and reliability. It can help customers solve the problems of lacking power supply in certain areas and the need for short-distance lifting and fixation of heavy objects during lifting operations. It is widely used in scenarios such as factory maintenance, warehouse loading and unloading, building decoration, mechanical and electrical maintenance, and emergency repairs in the field. The self-locking brake is safe and stable, suitable for intermittent lifting of small heavy objects.

Share to

Features

  • Compact Design, SmallBody, Low Headroom-Wide Usage
  • High Precision CNC Gears
  • Impact Resistance Gear Cover
  • Double Pawl Brake System Enforced Pawl Ratchet Disc &Brake Disc
  • Dust Cover on Brake System
  • High Precision 4 Caged Bearing Power Transmission
  • Engineering Optimized Hand Chain Wheel Groove and Cover-Preventing Hand Chain Stack in Fast Operation
  • High Precision Double CNC Load Chain Guides
  • Zinc Plated Stay Bolts, Side Plates &Load Chain Guides
  • Super Robust-Much Higher than 1500 cycles EN 13157 Endurance Testing

Other Standard Setting

  • ISO 16872 Standard V(100)Load Chain
  • ISO 16877 Grade T(80)Load Chain
  • Zinc Plated Hand Chain
  • Zinc Plated Load Chain
  • Zinc Plated Cast Safety Latch

Optional Setting

  • Over Load Protection
  • Fused Brake Disc
  • DOCROMET Treatment Important Parts
  • Thrust Bearings on Bottom Hook

Specifications

Capacityton0.511.52351020
Lifting heightm33333333
Test loadton6.312.520254062.5125250
Pull to rated loadN262265265272280358370370×2
No.of load chainmm11112248
Dia.of load chain mm667.187.1101010

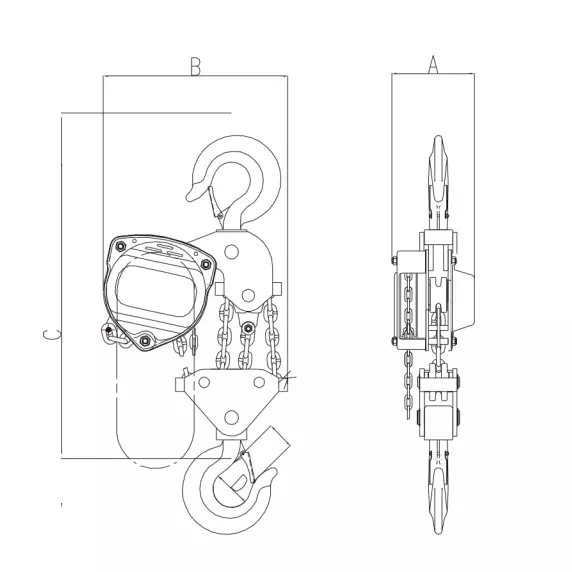

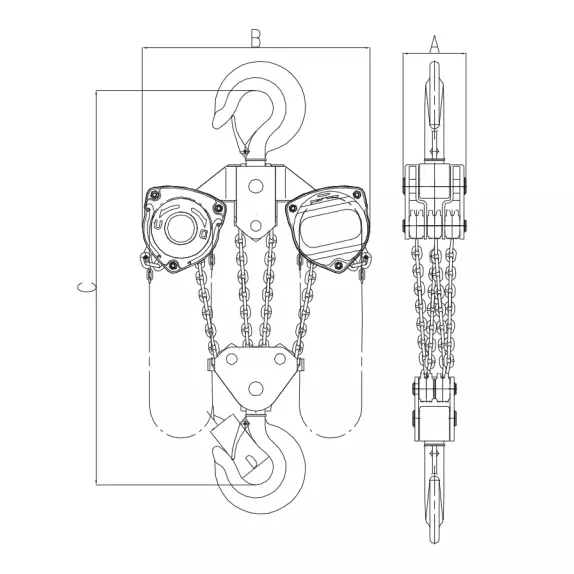

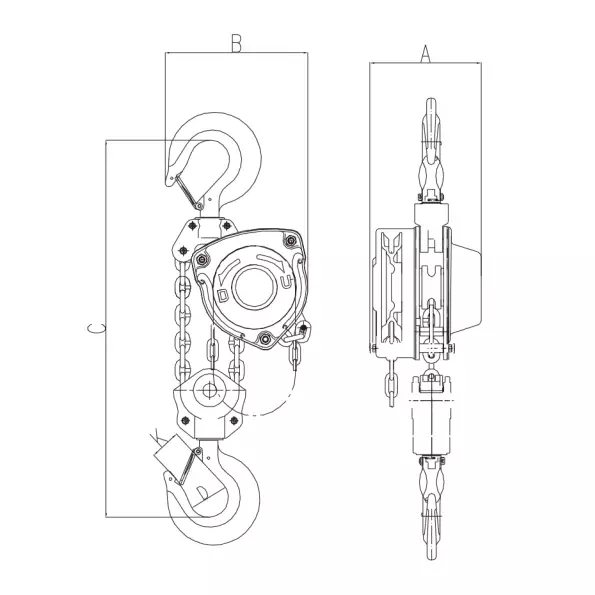

Dimensions(mm)A126.5143148152156181181192
B136156182198214266365630
C266324392407465636798890
D36405252606885106
K25.528383842505784
Net weightkg9.211.015.618.52341.276.8163.2
