SCXL Electric Chain Hoist Double-Speed Control Type (Manual Trolley)
The SCXL Electric Chain Hoist is a chain-driven electric lifting device primarily used for lifting, lowering, and short-distance horizontal transportation of heavy loads. It is suitable for applications in factory workshops, warehousing and logistics, equipment maintenance, and assembly lines. This product features stable drive performance, safe braking, dual overload protection, and low noise operation, effectively addressing challenges such as labor-intensive manual handling, low lifting efficiency, and difficulties in lifting within confined spaces. Compared to conventional models, it offers distinct advantages in noise reduction, chain wear resistance, and braking safety, making it ideal for fixed-position lifting at workstations, integration into automated production lines, high-precision assembly operations, and frequent use in workshop material handling.
Share to
Advantages
- Stable drive: Equipped with 2/8-pole pole-changing motor and gear reduction mechanism for reliable power transmission.
- Brake:side magnetic braking device
- Safe braking: Power-off automatic brake to prevent load falling when power fails.
- Dual overload protection: Mechanical friction clutch plus electronic detection system. Overload cuts hoisting function and only allows load lowering.
- Durable chain: High-strength hot-dip galvanized chain complying with GB and ISO standards, anti-rust and wear-resistant.
- Limit protection: Upper and lower limit devices to prevent over-hoisting and over-lowering; movement direction calibrated before delivery.
- Low-voltage control: 24V/48V pendant control. Integrated electric control with neat wiring.
- Reliable cable: Control cable with built-in steel wire for tension resistance and adjustable length.
- Easy maintenance: Service life of chain can be extended by applying special chain oil.
- Noise level: When lifting the maximum load, noise is less than or equal to 70 dB at a distance of 1 meter from the chain hoist.
Specification

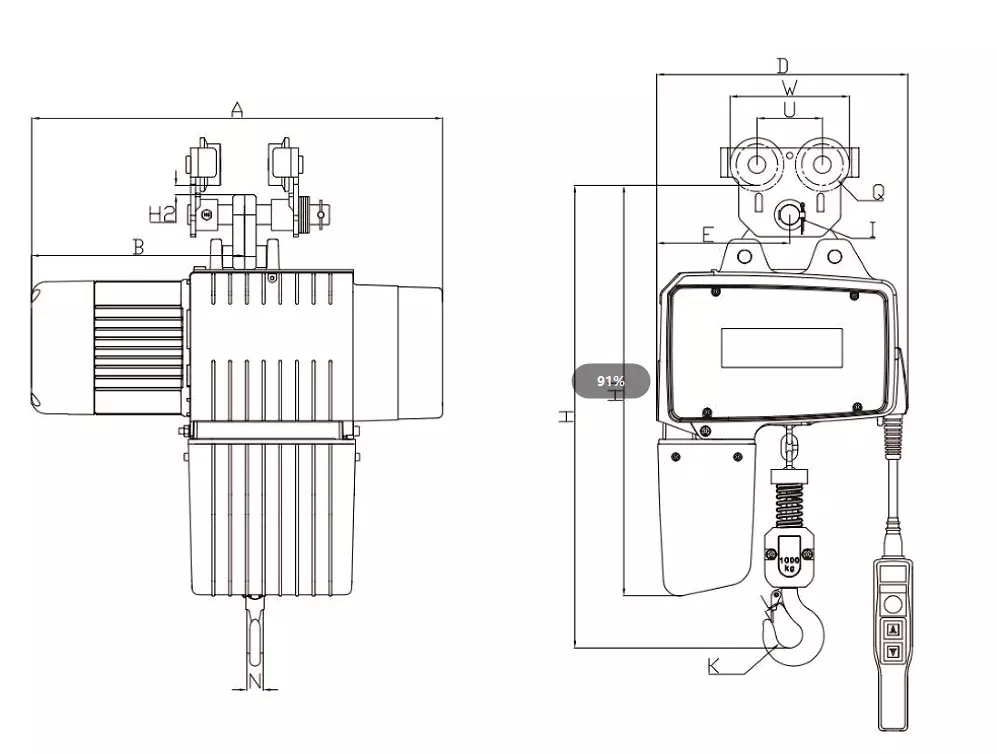

| ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (MANUAL TROLLEY) | |||||||
| Model | H | H1 | H2 | A | B | D | E |
| SCXL0.25-01 | 475 | 450 | 13 | 460 | 250 | 290 | 160 |
| SCXL0.5-01 | 495 | 450 | 13 | 490 | 270 | 320 | 170 |
| SCXL01-01 | 590 | 565 | 13 | 570 | 295 | 345 | 183 |
| SCXL01-02 | 560 | 450 | 13 | 490 | 270 | 320 | 170 |
| SCXL02-02 | 710 | 590 | 15 | 570 | 295 | 345 | 183 |
| ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (MANUAL TROLLEY) | |||||||
| Model | I | K | L | N | Q | U | W |
| SCXL0.25-01 | 27 | 30 | 24.5 | 18 | 57 | 90 | 164 |
| SCXL0.5-01 | 27 | 30 | 24.5 | 18 | 57 | 90 | 164 |
| SCXL01-01 | 27 | 36.5 | 25.5 | 23 | 57 | 90 | 164 |
| SCXL01-02 | 27 | 36.5 | 25.5 | 23 | 57 | 90 | 164 |
| SCXL02-02 | 31 | 45 | 33.5 | 29 | 67 | 115 | 213 |
| ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (MANUAL TROLLEY) | |||||||||
| Model | Capacity (Ton) | Lifting speed (m/min) | Motor power(kw) | Rotate speed (r/min) | Protect level | Working voltage (V/Hz) | Control voltage(V) | No.of load chain | Chian size |
| SCXL0.25-01 | 0.25 | 8/2 | 0.8/0.2 | 2880/720 | F | 3P/380V/50Hz | 24/36/48 | 1 | 5×15 |
| SCXL0.5-01 | 0.5 | 8/2 | 0.8/0.2 | 2880/720 | F | 3P/380V/50Hz | 24/36/48 | 1 | 5×15 |
| SCXL01-01 | 1 | 8/2 | 1.6/0.4 | 2880/720 | F | 3P/380V/50Hz | 24/36/48 | 1 | 7×21 |
| SCXL01-02 | 1 | 4/1 | 0.8/0.2 | 2880/720 | F | 3P/380V/50Hz | 24/36/48 | 2 | 5×15 |
| SCXL02-02 | 2 | 4/1 | 1.6/0.4 | 2880/720 | F | 3P/380V/50Hz | 24/36/48 | 2 | 7×21 |
