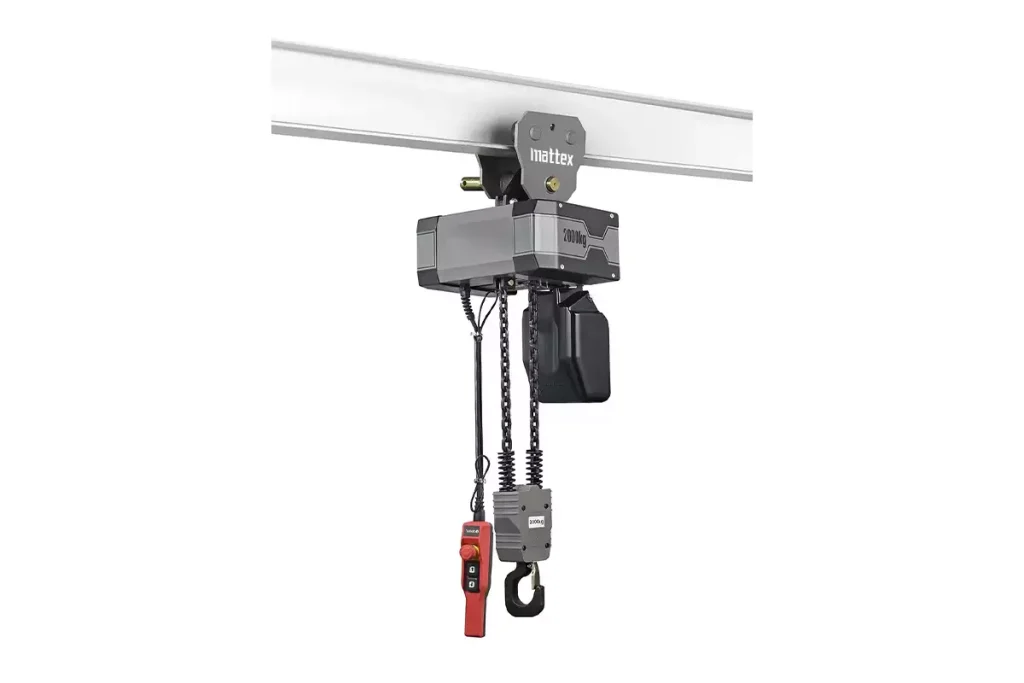

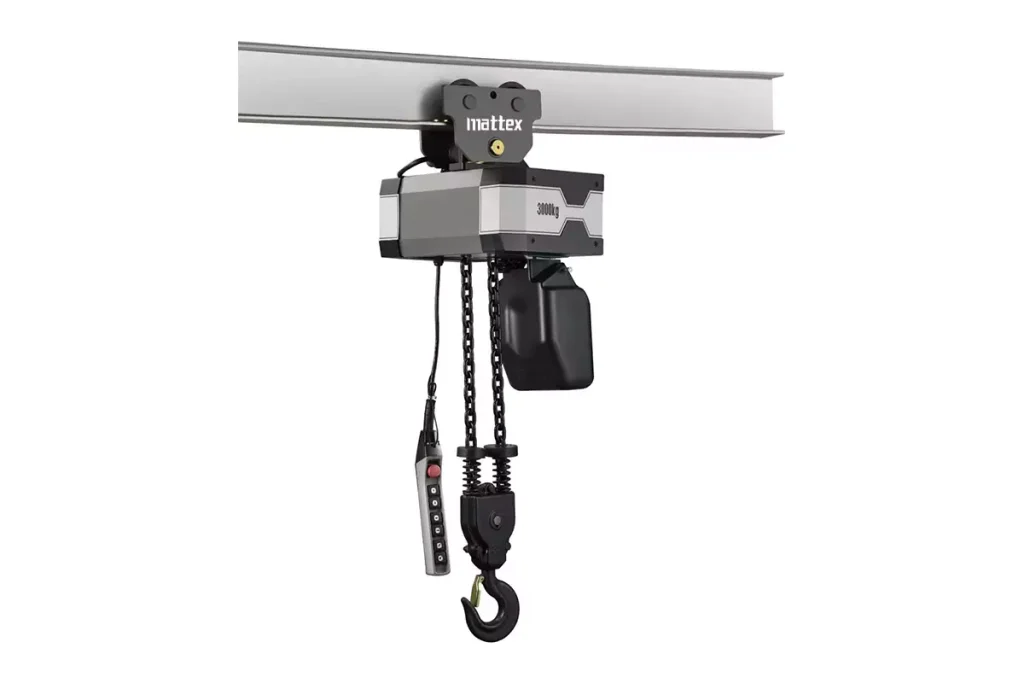

YJ Electric Chain Hoist

The YJ Electric Chain Hoist is an electric chain lifting equipment. It is mainly used for lifting, lowering and short-distance horizontal transportation of heavy objects, and is suitable for assembly line operations, single station lifting tasks, as well as maintenance of wind turbines and other scenarios. This product features a compact electronic control system, high-performance motor and gear reducer, which can help customers solve problems such as the difficulty of manual lifting of heavy objects, low efficiency of lifting operations, and the inability to lift in narrow spaces. Compared with ordinary products, it has certain advantages in the use of narrow spaces.

Share to

Feature

  • Suitable locations: YJ chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
  • Structural assembly: The optimised body of the YJ chain hoist, when paired with a highperformance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
  • Convenient maintenance: The YJ chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs.
  • Voltage range: Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide.

Small Size Specification

ModelCapacityLifting heightLifting speedPowerRPMPhasesVoltageControl VoltageRatingTravelling SpeedTravelling Power
(kg)(m)(m/min)(kw)(r/min)(V)(V)(m/min)(kW)
YJ 0.5-01500480.80 14403/2110/48024-48M511/210.75*2
YJ 01-011000441.10 14403/2110/48024-48M511/210.75*2
YJ 01-021000480.80 14403/2110/48024-48M511/210.75*2
YJ 02-012000471.10 14403/2110/48024-48M511/210.75*2
YJ 02-022000442.20 14403/2110/48024-48M511/210.75*2
YJ 03-013000473.00 14403/2110/48024-48M511/210.75*2
YJ 03-02300043.52.20 14403/2110/48024-48M511/210.75*2
YJ 05-02500043.53.00 14403/2110/48024-48M511/210.75*2

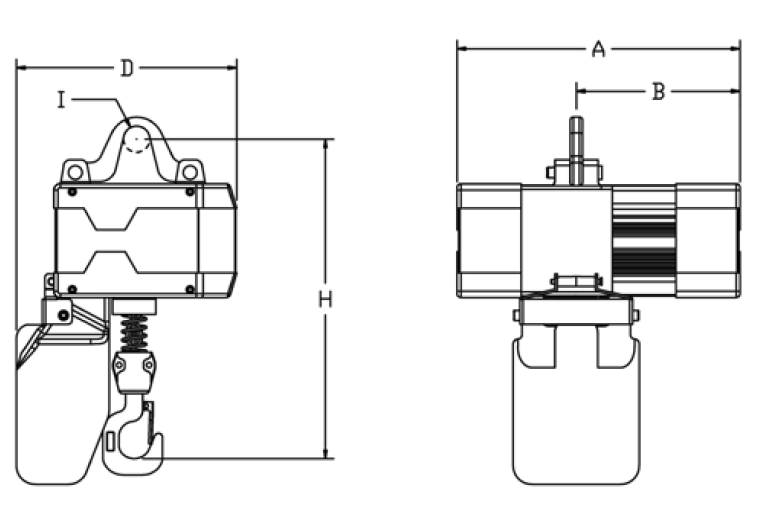

ModelHABDI
YJ 0.5-01420375218275Φ31
YJ 01-01440400243290Φ31
YJ 01-02510375218275Φ31
YJ 02-01575490258425Φ36
YJ 02-02560400243290Φ36
YJ 03-01625490258425Φ43
YJ 03-02680490258425Φ43
YJ 05-02735490258425Φ54

Large Size Specification

ModelCapacityLifting heightLifting speedPowerRPMPhasesVoltageControl VoltageRatingTravelling SpeedTravelling Power
(kg)(m)(m/min)(kw)(r/min)(V)(V)(m/min)(kW)
YJ 10-041000043.53.0*214403/2110/48024-48M511/210.75*2
YJ 15-061500042.253.0*214403/2110/48024-48M511/210.75*2
YJ 20-082000041.753.0*214403/2110/48024-48M511/210.75*2
YJ 25-102500041.43.0*214403/2110/48024-48M511/210.75*2

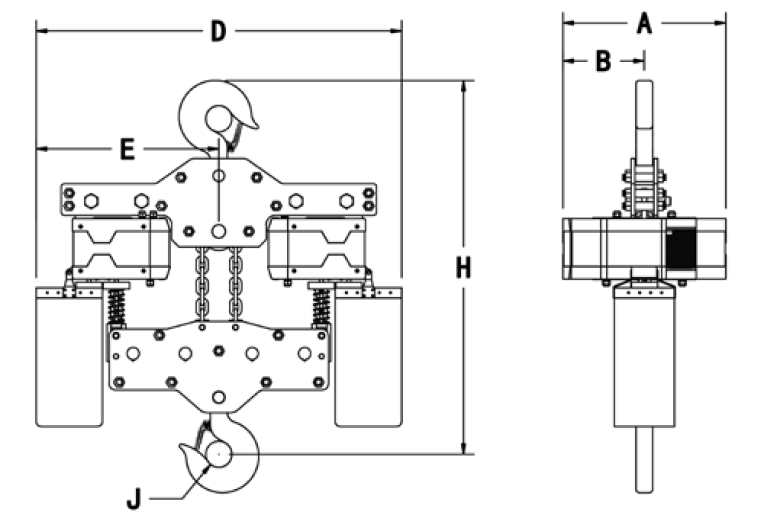

ModelHABDEJ
YJ 10-0411905202601160580Φ83
YJ 15-0613105202601350675Φ106
YJ 20-0814705202601540770Φ118
YJ 25-1016405202601730865Φ142
