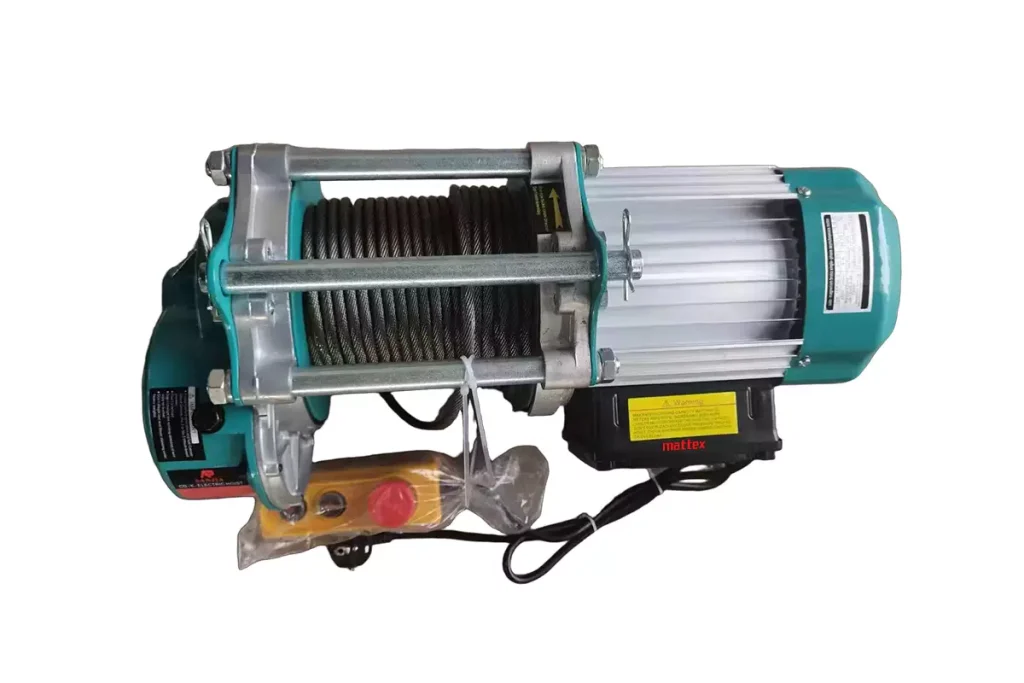

750-1500kg Electric Windlass

750 – 1500kg Electric Windlass 220V single-phase mains power supply. The aluminum motor housing has excellent heat dissipation performance. It can be installed in two ways: fixed at the bottom and suspended at the top. The steel wire rope can be customized in length. It is suitable for medium and light material lifting operations and is applicable to building interior and exterior decoration, attic warehouses, small processing factories, mechanical and electrical installation, temporary lifting on construction sites, etc.
This product features fast heat dissipation, lightweight body, convenient disassembly and relocation, simple operation, and overload protection. It can solve the problem of lifting materials in the field without 380V industrial power supply, replace manual handling, and improve the operation efficiency of material loading and unloading between floors.

Share to

Parameter

  • 750-1500kg
  • Voltage: 220V
  • Motor power: 3.2KW
  • Length of steel wire rope: 60m
  • Diameter of steel wire rope: 7mm
  • Overall size: 58*25*27.5cm(L*W*H)
  • N.W.: 44.6kg
  • G.W.: 48.1kg
  • Package size: 69*31*31cm(L*W*H)
