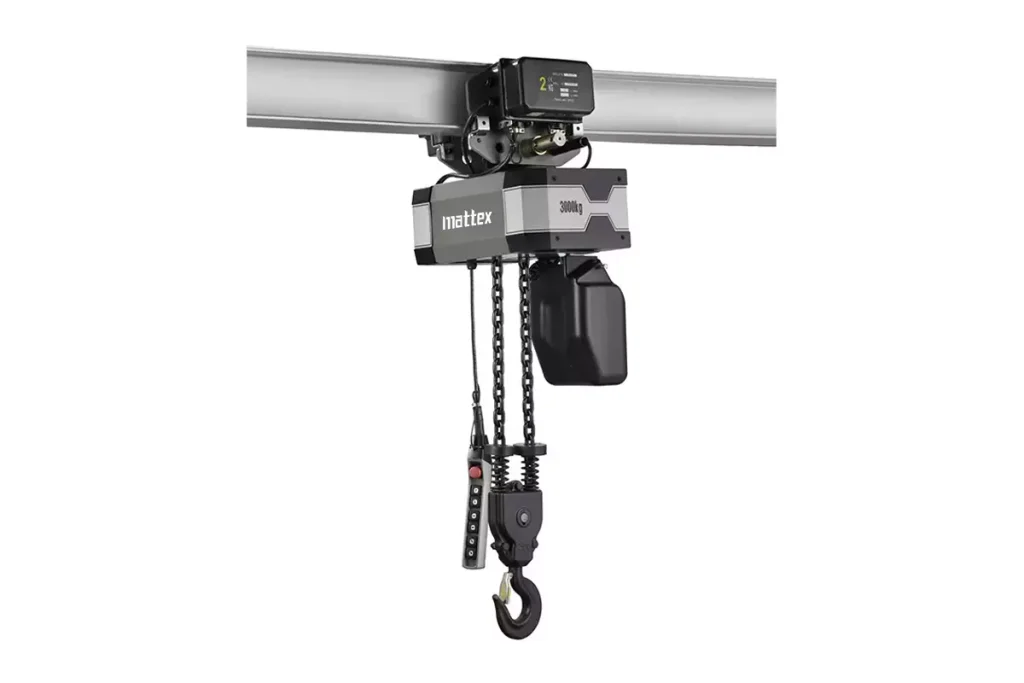

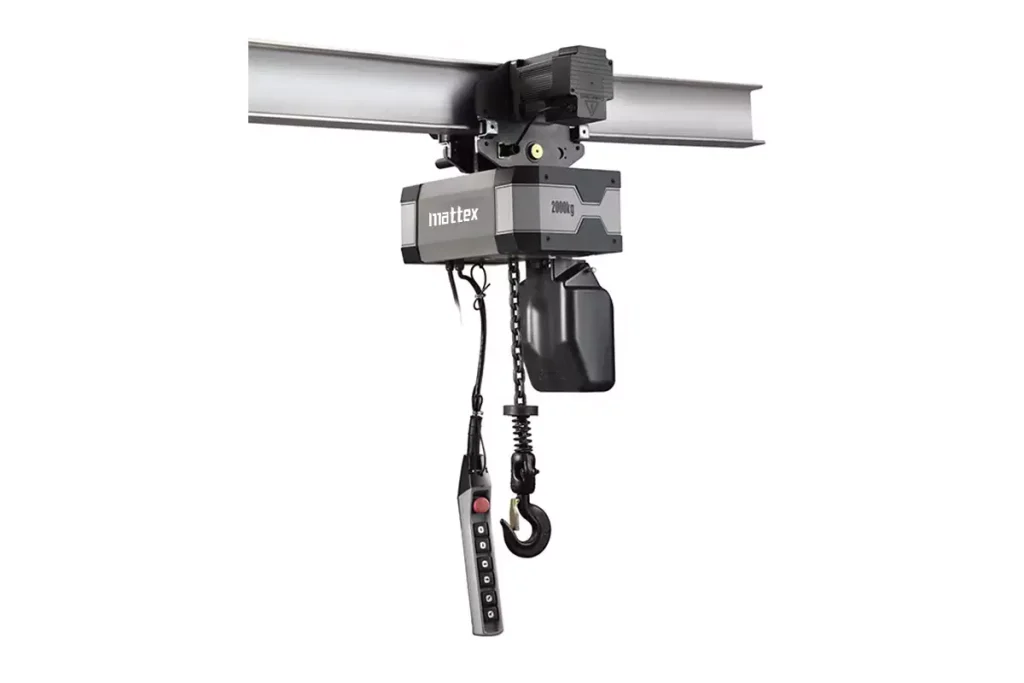

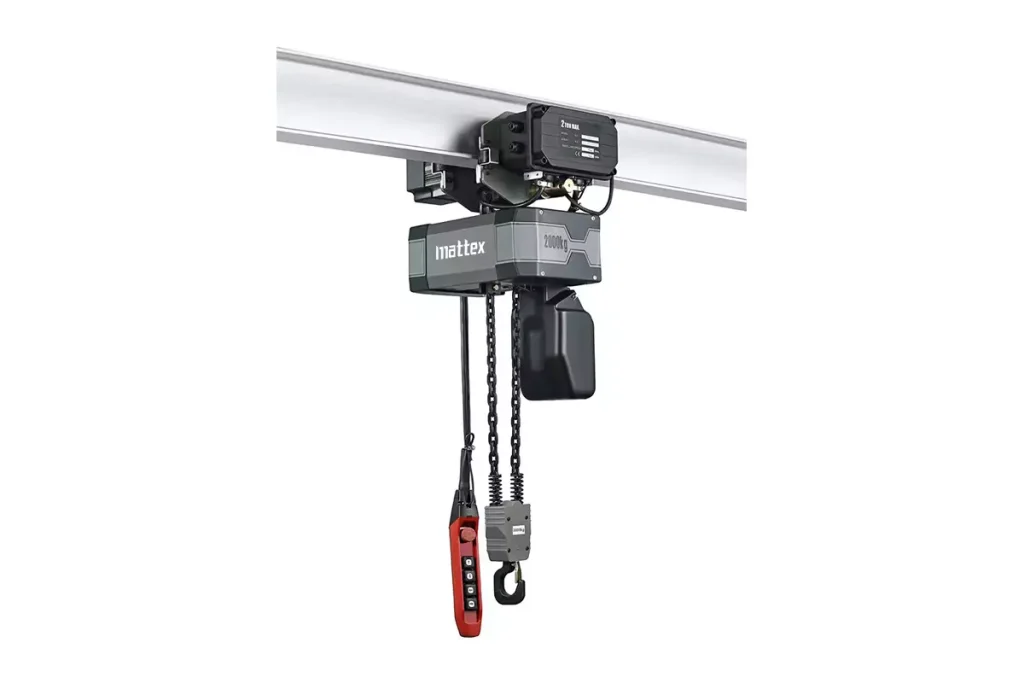

YJ Electric Chain Hoist With Electric Trolley

The YJ Electric Chain Hoist is an electric chain lifting equipment. It is mainly used for lifting, lowering and short-distance horizontal transportation of heavy objects, and is suitable for assembly line operations, single station lifting tasks, as well as maintenance of wind turbines and other scenarios. This product features a compact electronic control system, high-performance motor and gear reducer, which can help customers solve problems such as the difficulty of manual lifting of heavy objects, low efficiency of lifting operations, and the inability to lift in narrow spaces. Compared with ordinary products, it has certain advantages in the use of narrow spaces.

Share to

Feature

  • Suitable locations: YJ chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
  • Structural assembly: The optimised body of the YJ chain hoist, when paired with a highperformance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
  • Convenient maintenance: The YJ chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs.
  • Voltage range: Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide.

Specification

ModelCapacityLifting heightLifting speedPowerRPMPhasesVoltageControl VoltageRatingTravelling SpeedTravelling Power
(kg)(m)(m/min)(kw)(r/min)(V)(V)(m/min)(kW)
YJ 0.5-01500480.8 14403/2110/48024-48M511/210.75*2
YJ 01-011000441.1 14403/2110/48024-48M511/210.75*2
YJ 01-021000480.8 14403/2110/48024-48M511/210.75*2
YJ 02-012000471.1 14403/2110/48024-48M511/210.75*2
YJ 02-022000442.2 14403/2110/48024-48M511/210.75*2
YJ 03-013000473.0 14403/2110/48024-48M511/210.75*2
YJ 03-02300043.52.2 14403/2110/48024-48M511/210.75*2
YJ 05-02500043.53.0 14403/2110/48024-48M511/210.75*2

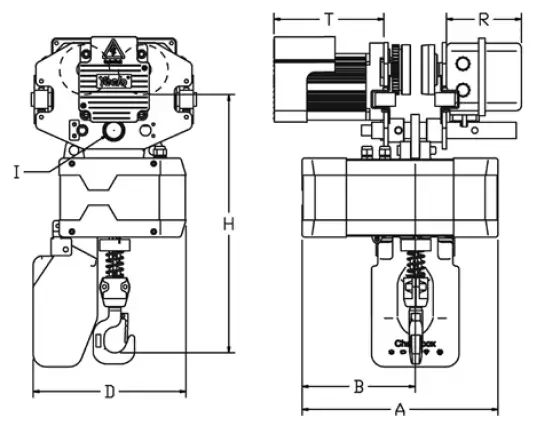

ModelHABDITR
YJ 0.5-0149037521827531 210 Φ142
YJ 01-0151040024329031 210 Φ142
YJ 01-0256537521827531 210 Φ142
YJ 02-0164049025842536 230 Φ142
YJ 02-0261540024329036 230 Φ142
YJ 03-0169549025842543 230 Φ142
YJ 03-0275049025842543 230 Φ142
YJ 05-0283049025842554 230 Φ142
