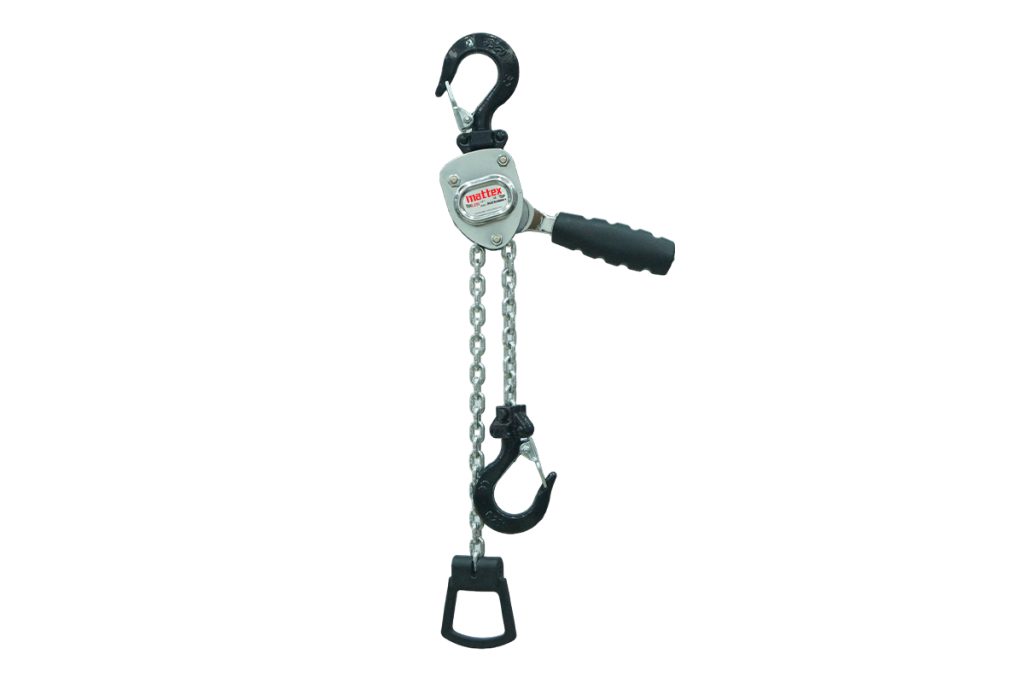

MINI Square Aluminum Alloy Lever Block
The MINI Square Aluminum Alloy Lever Block is a lightweight manual chain lifting and tensioning tool, mainly used for lifting, raising, towing, and tensioning of lightweight heavy objects. It is suitable for equipment maintenance, mechanical installation, outdoor construction, cargo binding and tensioning, exhibition setup, garden lifting, auto repair and maintenance, and other industries/scenarios. This product features an aluminum alloy casing, quick descent capability, small size and light weight, easy hand-pulling operation, ability to lift and tow, chain rust prevention, and built-in safety hook. It can help customers solve problems such as light-load lifting in power-free environments, operations in narrow spaces, material relocation and fixation, temporary tensioning and binding. Compared to ordinary hand-crank hoists, it has certain advantages in terms of compactness of the body, operational flexibility, and the ability to vertically lift + horizontally tow. It is suitable for temporary operations involving light tonnage, narrow spaces, and the need for both lifting and tensioning.
Share to
Specification
| Rated Capacity(kg) | 100 | 150 | |
| Standard Lift(m) | 1.5 | 1.5 | |
| Pull to lift capacity (N) | 120 | 180 | |
| Load Chain Diameter(mm) | ∅4 | ∅4 | |
| No.of Falls | 1 | 1 | |
| Tested Load(kg) | 150 | 225 | |
| Net Weight(kg) | 1.4 | 1.5 | |
| Gross Weight(kg) | 1.5 | 1.6 | |

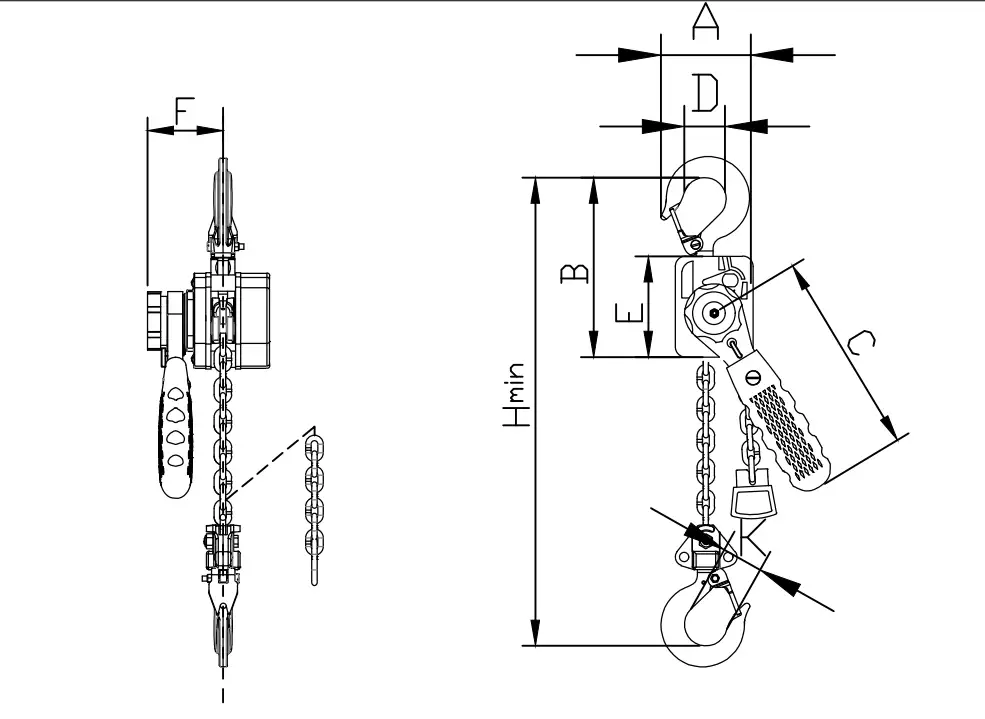

| Dimension (mm) | A | 65 | 65 |
| B | 130 | 130 | |
| C | 145 | 145 | |
| D | 20 | 20 | |
| E | 55 | 58 | |
| F | 55 | 55 | |
| H | 220 | 220 | |
| K | 20 | 20 | |
