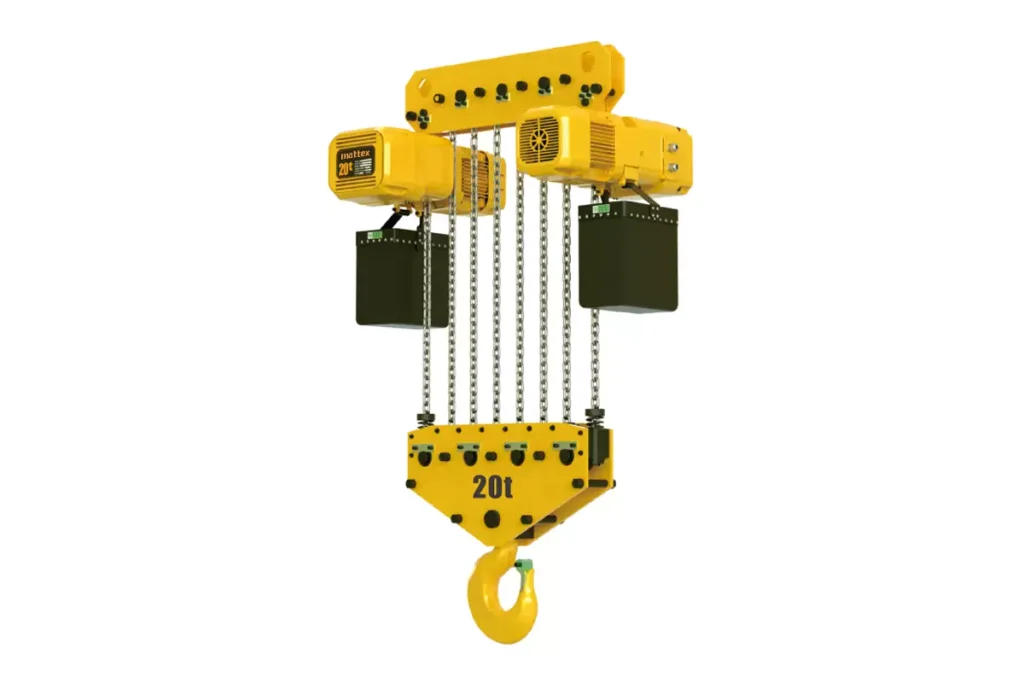

ER Double/Single Speed Electric Chain Hoist (Fixing Type)
The ER Double/Single Speed Electric Chain Hoist (Fixing Type) is installed with the top lifting ring fixedly, only capable of vertical lifting and does not have a walking mechanism. It is used for fixed-point lifting operations and is suitable for scenarios such as small machine processing stations, assembly lines, simple gantry frames, small warehouses, and equipment maintenance stations.
This product features a compact structure, dual-speed lifting, a sturdy casing, reliable braking, high chain strength, and simple maintenance. It can help customers complete the lifting and lowering of fixed workpieces, solving the problems of manual heavy object handling being laborious and difficult to align during lifting.
Compared with running-type hoists, it does not require I-beam tracks and walking trolleys, resulting in lower investment costs and easier installation. Compared with civilian small lifting machines, it is an industrial 380V model that can operate continuously for a long time and at a high frequency, with higher stability and safety margin.
Share to
Features
- Compared with variable pole speed regulation, double speed variable frequency speed regulation can reduce the load swing and achieve a more stable lifting operation.
- The low speed ratio can be adjusted, so it can achieve smooth start.
- Improve low speed stop, improve positioning accuracy.
- The lifting ratio can be adjusted to 6: 1.
- The moving speed ratio can be adjusted to 6:1.
ER Series Variable Frequency Double Speed Electric Chain Hoist (fixing type)
| Product Model | Capacity (ton) | Power supplying | Control voltage(V) | NO.of load chain | Lifing motor (variable frequency) | |||
| Insulation clas8 | Rouar (KW) | Rotate speed (m/min) | Double speed (m/min) | |||||
| ER0.5-01DF | 0.5 | 3 Phase, 220V/380V, 440V/525V, 50Hz/60Hz | 24/36/48 | 1 | F Grade | 1.5 | 1440 | 1.36-8.2 |
| ER01-01DF | 1 | 1 | 1.5 | 1.2-7.2 | ||||
| ERO1-02DF | 1 | 2 | 1.5 | 0.68-4.1 | ||||
| ER1.5-01DF | 1.5 | 1 | 3.3 | 1.5-9 | ||||
| ER02-01DF | 2 | 1 | 3.3 | 1.2-7.2 | ||||
| ER02-02DF | 2 | 2 | 1.5 | 0.6-3.6 | ||||
| ER03-01DF | 3 | 1 | 3.3 | 1.8-5.6 | ||||
| ER03-02DF | 3 | 2 | 3.3 | 0.75-4.5 | ||||
| ER05-02DF | 5 | 2 | 3.3 | 0.55-3.3 | ||||
| ER7.5-03DF | 7.5 | 3 | 3.3 | 0.38-2.2 | ||||
| ER10-04DF | 10 | 4 | 2×3.3 | 0.55-3.3 | ||||
| ER15-06DF | 15 | 6 | 2×3.3 | 0.38-2.2 | ||||
| ER20-08DF | 20 | 8 | 2×3.3 | 0.28-1.6 | ||||
| ER25-10DF | 25 | 10 | 2×3.3 | 0.22-1.3 | ||||
| ER30-12DF | 30 | 12 | 2×3.3 | 0.18-1.1 | ||||
ER Series Single Speed Electric Chain Hoist (fixing type)
| Model | Capacity (ton) | Power supplying | Control volage(V) | NO.of load chain | Lifting motor (variable frequency) | |||
| Insulation class | Ponar (KW) | Rotate speed (m/min) | Single speed (m/min) | |||||
| ER0.5-01SF | 0.5 | 3 Phase, 220V/380V, 440V/525V, 50Hz/60Hz | 24/36/48 | 1 | F Grade | 1.5 | 1440 | 8.2 |
| ERO1-01SF | 1 | 1 | 1.5 | 7.2 | ||||
| EROI-02SF | 1 | 2 | 1.5 | 4.1 | ||||
| ER1.5-01SF | 1.5 | 1 | 3.3 | 9 | ||||
| ER02-01SF | 2 | 1 | 3.3 | 7.2 | ||||
| ER02-02SF | 2 | 2 | 1.5 | 3.6 | ||||
| ER03-01SF | 3 | 1 | 3.3 | 5.6 | ||||
| ER03-02SF | 3 | 2 | 3.3 | 4.5 | ||||
| ER05-02SF | 5 | 2 | 3.3 | 3.3 | ||||
| ER7.5-03SF | 7.5 | 3 | 3.3 | 2.2 | ||||
| ER10-04SF | 10 | 4 | 2×3.3 | 3.3 | ||||
| ER15-06SF | 15 | 6 | 2×3.3 | 2.2 | ||||
| ER20-08SF | 20 | 8 | 2×3.3 | 1.6 | ||||
| ER25-10SF | 25 | 10 | 2×3.3 | 1.3 | ||||
| ER30-12SF | 30 | 12 | 2×3.3 | 1.1 | ||||
