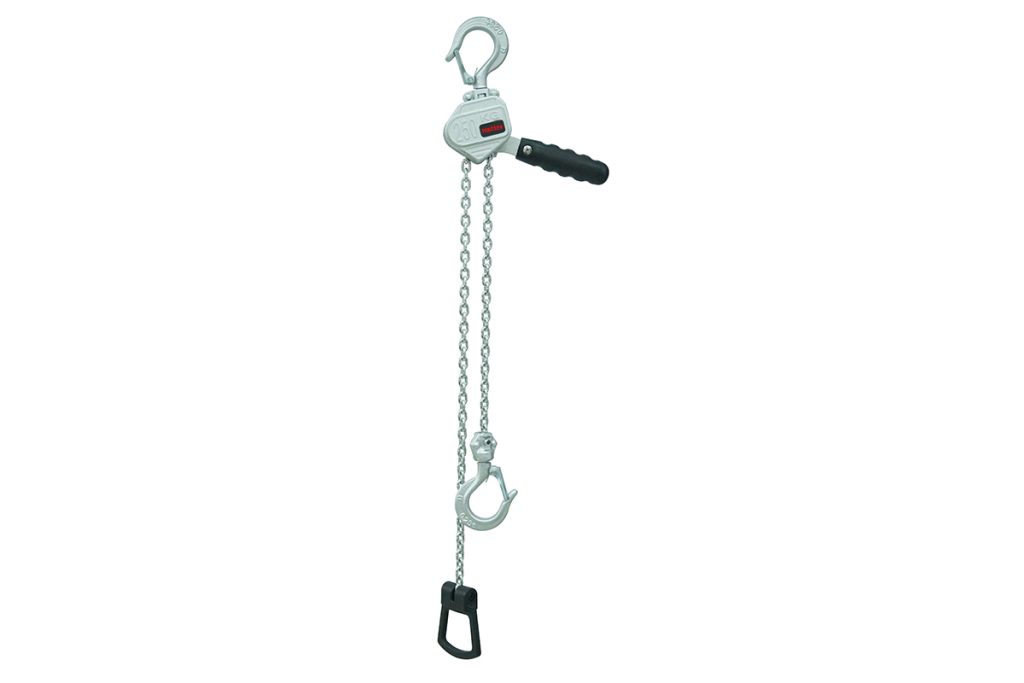

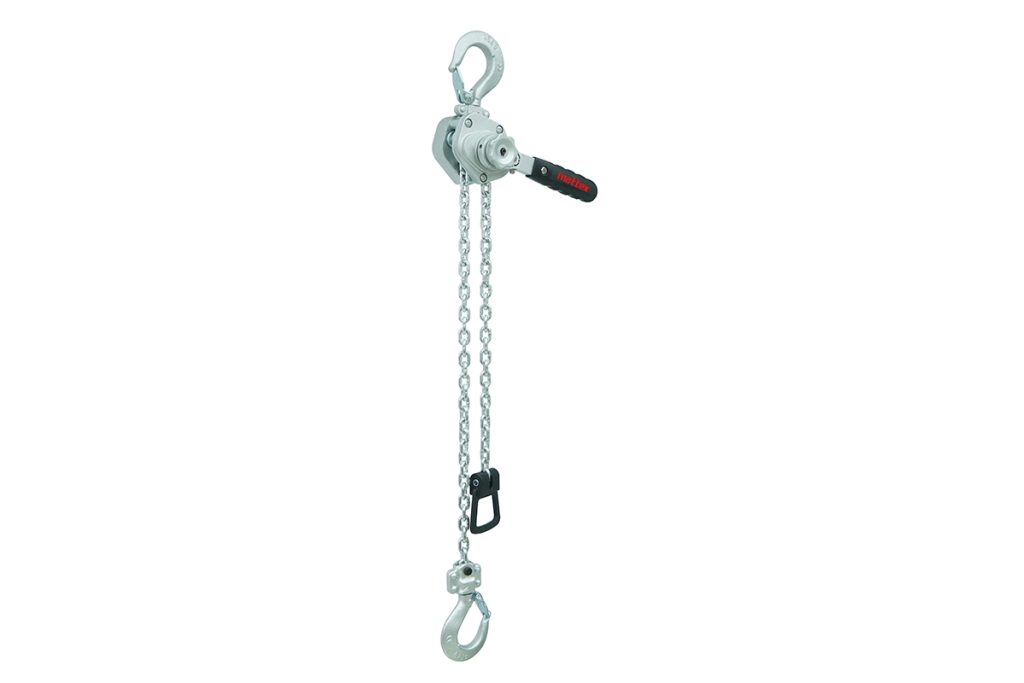

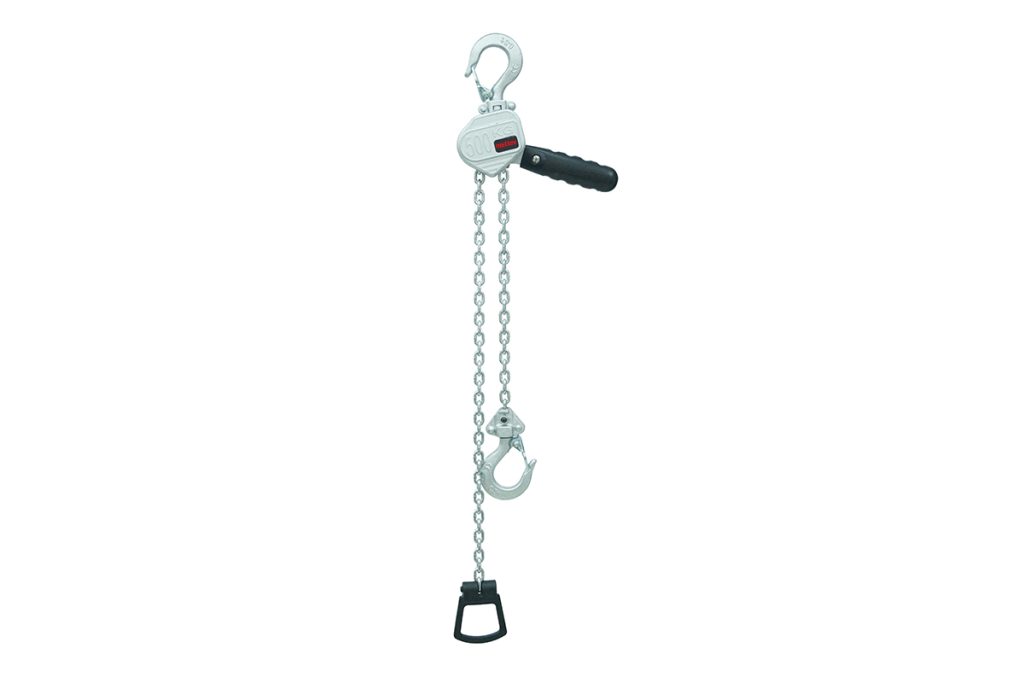

MINI Type Aluminum Alloy Lever Block

The MINI Type Aluminum Alloy Lever Block is made of aluminum alloy, which is lighter in weight. It can lift and tension by simply turning the handle. It does not require an external power source. It combines portability with strength, suitable for weak current communication construction, installation of steel frames for decoration, maintenance of small equipment, outdoor lightweight pulling and lifting operations, flexible in narrow spaces, and comes with a safety brake.

Share to

Features

  • More Light weight and compact design
  • Aluminum alloy steel case
  • Advance gear reduction system
  • Double pawl
  • Long lfe brake discs

Specifications

Capacity (ton)0.250.50.75
Lifting height(m)1.51.51.5
Running test load(N)3757501125
Hand force to lift rated load(N)190 240 290
No.of falls111
Load chain size(mm)3.2×94.0× 125Q × 15
Net weight(kg)1.52.53.4
