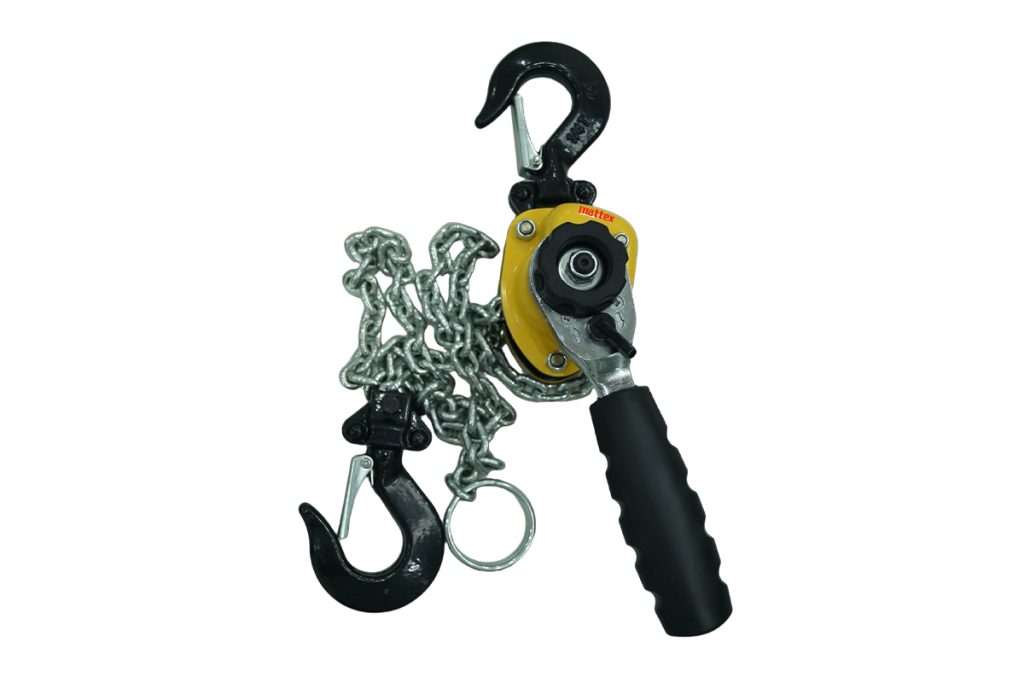

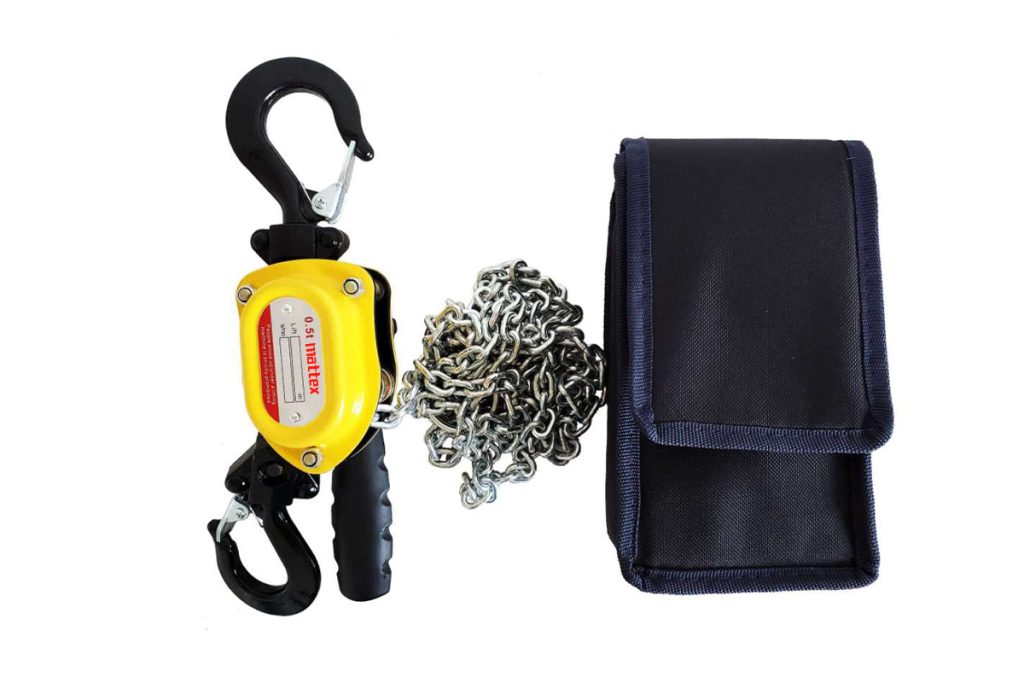

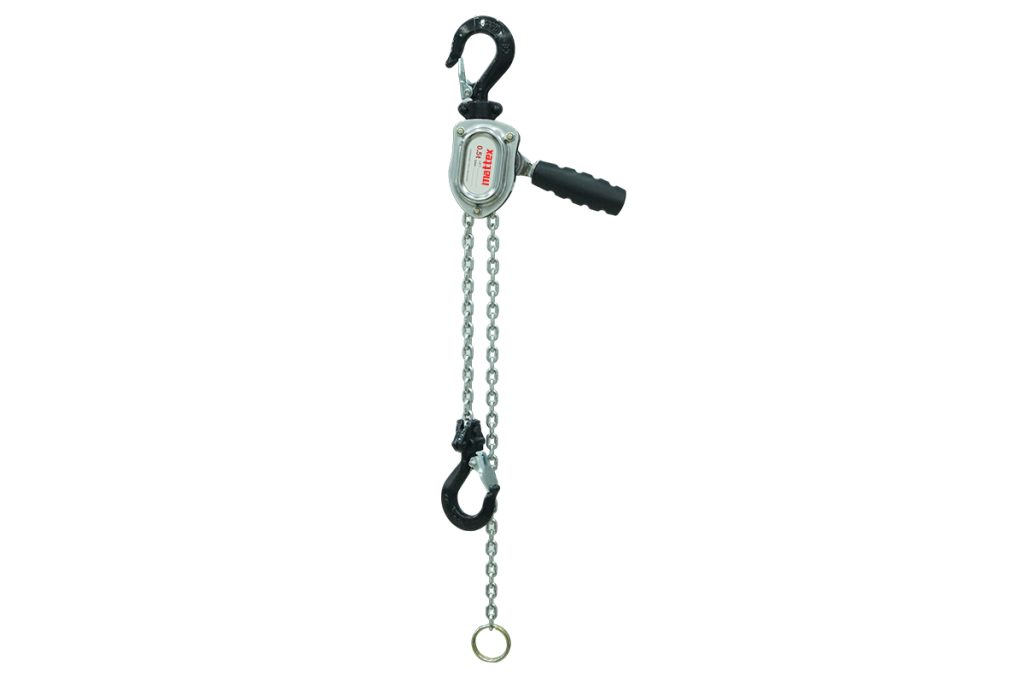

MINI Type Lever Block

The MINI Type Lever Block is a small manual lifting and traction tool. It achieves the lifting and tensioning of heavy objects by turning the handle. It is lightweight, compact in size, does not require power supply, and is suitable for light-load hoisting, pulling and positioning. Suitable for scenarios such as maintenance of small equipment, installation of steel frames for decoration, tightening of weak cables, and fixation of lightweight goods, involving light-load lifting and fine-tuning pulling.

Share to

Features

  • Extremely light weight,compact design,suitable for confined spaces,one hand operation
  • The upper and lower hook hold are forged from anti-aging, high-strength ally steel to prevent sudden breakage from overloading
  • The upper and lower hooks are forged from high strength alloy steel with safety latch and can be rotated freely 360°
  • The forged handle is ergonomic designPP material handle sleeve, more comfortable and safe operation
  • The all-steel frame,housing and gear drive mechanism are crash-proof, the case surface is chrome plated
  • Enclosed design protects internal components from contamination
  • Disc load brakes are made of high quality materials and are resistant to corrosion
  • G80 high strength alloy steel liting chain,higher toughness, longer service life
  • Standard free wheel devicewith neutral adjustment lifting chain function, can quickly adjust the chain position

Specifications

Capacity(ton)0.250.50.75
Lifting height(m)1.51.51.5
Running test load(N)3757501125
Hand force to lift rated load(N)260260200
No.of falls111
Load chain size(mm)4.0×124.0×125.0×15
Net weight(kg)2.153.14.75
