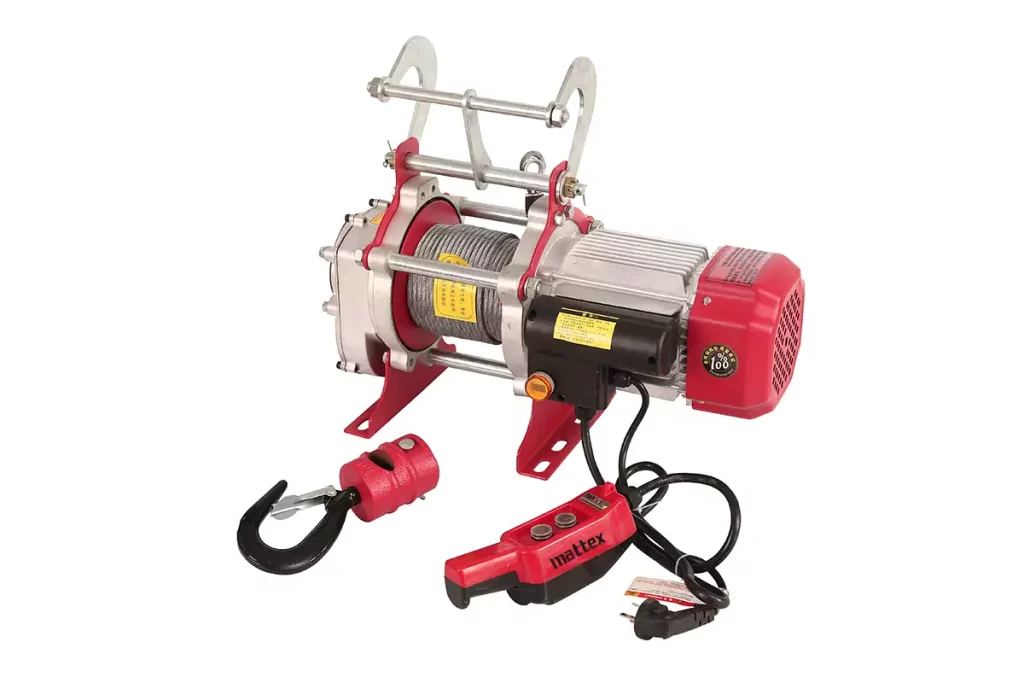

Electric Windlass
The Electric Windlass is compatible with 220V single-phase household power supply. The aluminum motor housing has good heat dissipation and can be fixed at the bottom or hung at the top. The length of the lifting wire rope can be selected. It is suitable for scenarios such as building decoration, material hoisting in stores, small factories, warehouse attics, equipment installation, and temporary lifting on construction sites.
This product features fast aluminum shell heat dissipation, dual functions (fixed / suspended), flexible installation, availability of 220V mains power supply, relatively light weight, and ease of movement. It can help customers solve the problem of material lifting in places without 380V industrial electricity, and quickly complete the hoisting of floor materials and small-sized equipment.
Share to
Parameter
| Capacity | 500KG/1000KG | 750KG/1500KG |
| Lifting speed | 15-26m/min | 7-14m/min |
| Length of wire rope | 30m | 30m |
| Dia of wire rope | 6mm | 7mm |
| Motor power | 2.2KW | 3.0KW |
| Insulation grade | F Grade | F Grade |
| Weight | 35KG | 38.5KG |
| Size | 550*260*430MM | 530*270*280MM |
