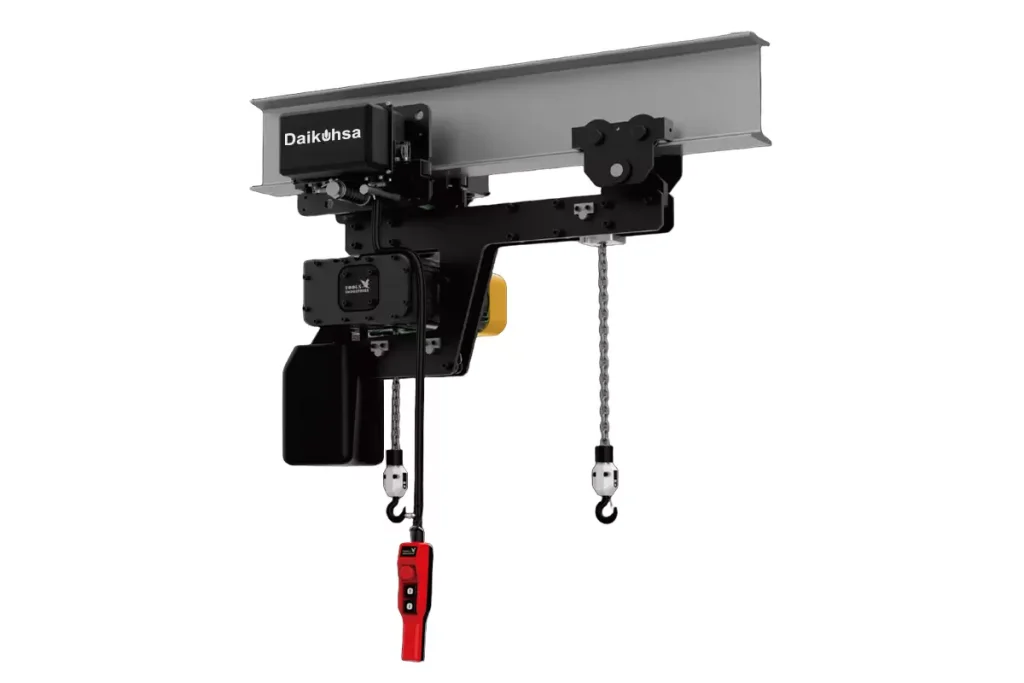

SCXL Electric Chain Hoist Double-Speed Control Type (Low Headroom Clearance Type)

The SCXL Electric Chain Hoist is a chain-driven electric lifting device primarily used for lifting, lowering, and short-distance horizontal transportation of heavy loads. It is suitable for applications in factory workshops, warehousing and logistics, equipment maintenance, and assembly lines. This product features stable drive performance, safe braking, dual overload protection, and low noise operation, effectively addressing challenges such as labor-intensive manual handling, low lifting efficiency, and difficulties in lifting within confined spaces. Compared to conventional models, it offers distinct advantages in noise reduction, chain wear resistance, and braking safety, making it ideal for fixed-position lifting at workstations, integration into automated production lines, high-precision assembly operations, and frequent use in workshop material handling.

Share to

Advantages

  • Stable drive: Equipped with 2/8-pole pole-changing motor and gear reduction mechanism for reliable power transmission.
  • Safe braking: Power-off automatic brake to prevent load falling when power fails.
  • Dual overload protection: Mechanical friction clutch plus electronic detection system. Overload cuts hoisting function and only allows load lowering.
  • Durable chain: High-strength hot-dip galvanized chain complying with GB and ISO standards, anti-rust and wear-resistant.
  • Limit protection: Upper and lower limit devices to prevent over-hoisting and over-lowering; movement direction calibrated before delivery.
  • Low-voltage control: 24V/48V pendant control. Integrated electric control with neat wiring.
  • Reliable cable: Control cable with built-in steel wire for tension resistance and adjustable length.
  • Easy maintenance: Service life of chain can be extended by applying special chain oil.
  • Noise level: When lifting the maximum load, noise is less than or equal to 70 dB at a distance of 1 meter from the chain hoist.

Specification

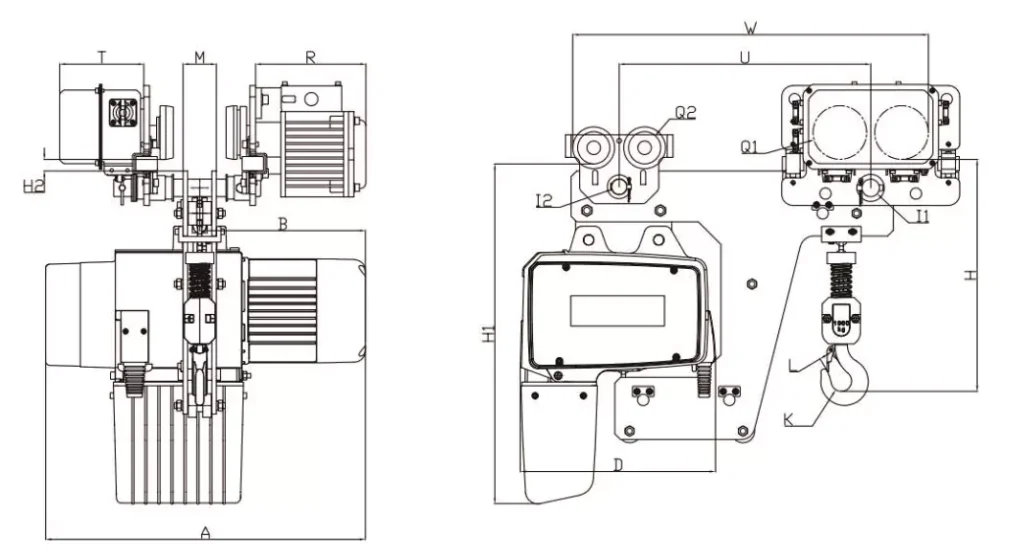

ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (LOW HEADROOM CLEARANCE TYPE)
ModelHH1H2ABDI1I2
SCXL0.25-0133047520.54902702903127
SCXL0.5-0133047520.54902703203127
SCXL01-0140560020.55702953453127
SCXL01-0240047520.54902703203127
SCXL02-02480625315702953453631

ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (LOW HEADROOM CLEARANCE TYPE)
ModelKLMRTQ1Q2UW
SCXL0.25-013024.5511951499557400584
SCXL0.5-013024.5511951499557400584
SCXL01-0136.525.5591951499557445629
SCXL01-0236.525.5511951499557400584
SCXL02-024533.55919514911067445670

ELECTRIC CHAIN HOIST DOUBLE-SPEED CONTROL TYPE (LOW HEADROOM CLEARANCE TYPE)
ModelCapacity(Ton)Lifting speed (m/min)Motor power(kw)Rotate speed(r/min)Protect levelWorking voltage (V/Hz)Control voltage(V)
SCXL0.25-010.58/20.8/0.22880/720F3P/380V/50Hz24/36/48
SCXL0.5-010.58/20.8/0.22880/720F3P/380V/50Hz24/36/48
SCXL01-0118/21.6/0.42880/720F3P/380V/50Hz24/36/48
SCXL01-0214/10.8/0.22880/720F3P/380V/50Hz24/36/48
SCXL02-0224/11.6/0.42880/720F3P/380V/50Hz24/36/48
No.of load chainChian sizeRunning motor Power(kw)Running motor-Rotate speed (m/min)I-beam width(mm)Wheel diameter (mm)Moving speed(single speed)(r/min)Moving speed(Frequency conversion) (r/min)
15×150.4144075-17895102-10
15×150.4144075-17895oror
17×210.4144075-17895oror
25×150.4144082-17895oror
27×210.4144082-178110193-19
